CENTRIC part description

Product Description

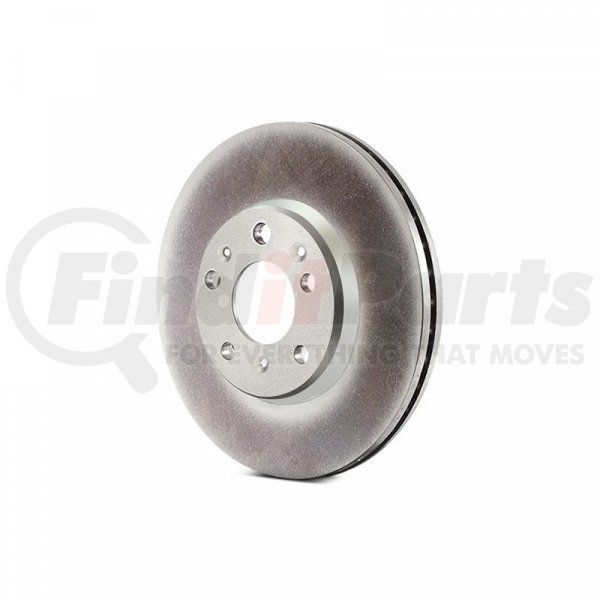

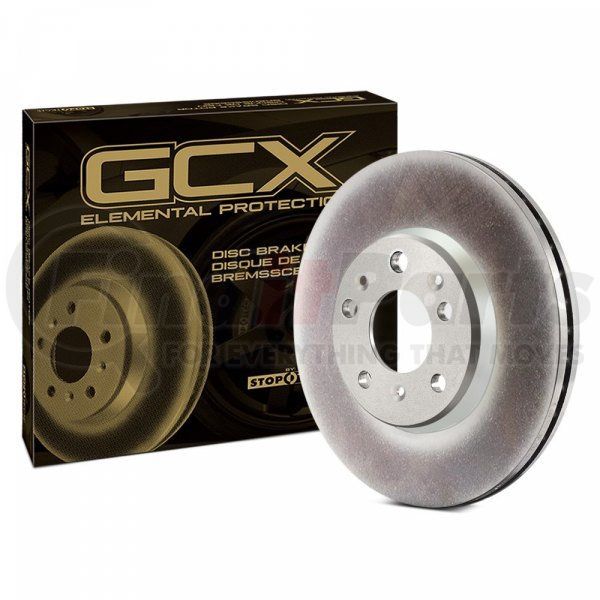

Centric GCX Rotor with Partial Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Product Attributes

Hat Id [cntrc] In 5.606
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Hat Id [cntrc] Mm 142.400
Weight [cntrc] Kgs 12.300
Disc Mounting [cntrc] Floating
Weight [cntrc] Lbs 27.100
Vane Style [cntrc] Straight
Product Grade [cntrc] Premium
OEM Vane Count [cntrc] 47
Misc Holes [cntrc] 2
Discard Thickness 28.000 MM
Stud/Lug Hole Diameter 0.496 IN
Stud/Lug Hole Diameter 12.600 MM
Stud/Lug Hole Quantity 5
Mounting Bolt Hole Circle Diameter 4.500 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Center Hole Diameter 2.717 IN
Center Hole Diameter 69.000 MM
Bearings Included No
Solid Or Vented Type Rotor Vented
Surface Type Smooth
ABS Tone Ring Included No
Outside Diameter 340.000 MM
Outside Diameter 13.386 IN
Overall Height 1.972 IN
Overall Height 50.100 MM
Hat Finish Coated
Disc Finish Partially Coated
Nominal Thickness 30.000 MM
Nominal Thickness 1.181 IN
Discard Thickness 1.102 IN
