NATIONAL SEALS part description

Product Description

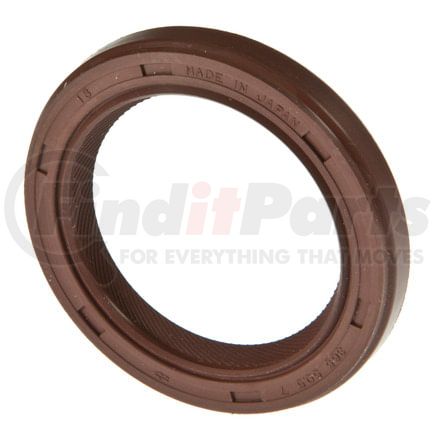

Engine Crankshaft Seal

Application Summary

2001-2005 Kia Rio (Front) (Liter: 1.5, 1.6 & Engine(cc): 1493, 1594 & Cylinder: 4 & Block: L & Bore(in): 2.97, 3.07 & Bore(mm): 75.5, 78.0 & Stroke(in): 3.28 & Stroke(mm): 83.4, 83.3); 1998-2001 Kia Sephia (Front) (Liter: 1.8 & Engine(cc): 1793 & Cylinder: 4 & Block: L & Bore(in): 3.29 & Bore(mm): 83.0 & Stroke(in): 3.35 & Stroke(mm): 85.0); 2000-2004 Kia Spectra (Front) (Liter: 1.8 & Engine(cc): 1793 & Cylinder: 4 & Block: L & Bore(in): 3.29 & Bore(mm): 83.0 & Stroke(in): 3.35 & Stroke(mm): 85.0)

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 400°F / -40°C to 204°C
  • Temperature range: -40degF to 400degF / -40degC to 204degC
  • Excellent high temperature capabilities
  • Compatible with wide range of fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 1.437 IN
Inside Diameter 36.500 MM
Outside Diameter 1.992 IN
Outside Diameter 50.600 MM
Width 0.276 IN
Width 7.000 MM
Material Fluoro-Elastomer
Helix Type Clockwise-Spiral Lip Design
Part Description Oil Seal
Series 710600
Thickness 0.276 IN
Thickness 7.000 MM
Type 32
Unit of Dimension Inch
Housing Bore 1.988 in
Housing Bore 50.500 MM
Shaft Diameter 1.437 IN
Shaft Diameter 36.500 MM
Shaft Diameter 1.437 IN
Housing Bore 1.988 IN
Grade Type Premium

Additional Information

Country of Origin (Primary) JP
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Canadian Harmonizing Tariff Code 4016930000
UPC 00614046955837

Part Interchanges

Fits Vehicles

  • Kia Sephia (1998-2001)
  • Kia Spectra (2000-2004)
  • Kia Rio (2001-2005)
