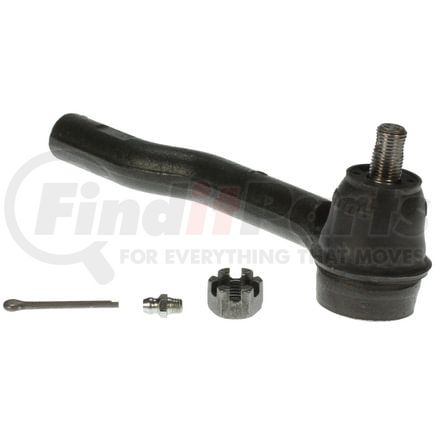

Name: Moog ES800427 MOOG ES800427 Steering Tie Rod End
SKU: es800427
Price: 42.49 USD
Availability: InStock

MOOG part description

Passenger Car/Light Truck Applications

Make	Model	Year
CHEVROLET	TRACKER	2004-1999
SUZUKI	GRAND VITARA	2005-1999
	VITARA	2004-1999
	XL-7	2006-2002

Product Description

Steering Tie Rod End

Application Summary

1999-2005 Suzuki Grand Vitara JLS Plus JLX Plus JLS JLX Limited JLX Plus SE XL-7 XL-7 Plus XL-7 Touring XL-7 Limited JLS Plus SE (Front Left Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1999-2004 Suzuki Vitara (Front Left Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2002-2006 Suzuki XL-7 (Front Left Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1999-2004 Chevrolet Tracker (Front Left Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)

Features & Benefits

RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

End 1 Gender	FEMALE
End 1 Thread Diameter	14.0 MM
End 1 Thread Pitch	1.5 MM
End 2 Gender	Female
End 2 Thread Diameter	12.0 MM
End 2 Thread Pitch	1.3 MM
Length Stud Center to End	6.880 IN
Type	STRAIGHT
Part Description	Steering Tie Rod End

Additional Information

Country of Origin (Primary)	MX
Canadian Harmonizing Tariff Code	8708949900
Harmonized Tariff Code (Schedule B)	8708948000
Harmonized Tariff Code (HTS)	8708947550
Refurbished Part	N
Remanufactured Part	N
UPC	00080066437453
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

MOOG ES800427 Cross Reference

We have 1 alternatives for the ES800427 by MOOG:

080066437453

Fits Vehicles

Chevrolet Tracker (1999-2004)
Suzuki XL-7 (2002-2006)
Suzuki Vitara (1999-2004)
Suzuki Grand Vitara (1999-2005)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
