MOOG part description

Product Description

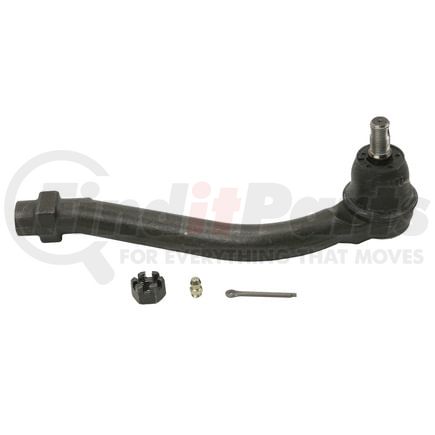

Steering Tie Rod End

Application Summary

2011-2013 Kia Sorento (Front Left Outer) (Qualifier: Design Allows Easier Installation); 2007-2012 Hyundai Santa Fe (Front Left Outer) (Qualifier: Design Allows Easier Installation); 2007-2012 Hyundai Veracruz (Front Left Outer) (Qualifier: Design Allows Easier Installation)

Features & Benefits

  • RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
  • GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
  • ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
  • PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
  • STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
  • EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
  • COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
  • RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

End 1 Gender FEMALE
End 1 Thread Diameter 16.0 MM
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5 MM
End 2 Gender Female
End 2 Thread Diameter 12.0 MM
End 2 Thread Pitch 1.25 MM
Length Stud Center to End 9.000 IN
Dust Boot Included Yes
Greasable Yes
Type BENT
Part Description Steering Tie Rod End

Additional Information

Country of Origin (Primary) KR
Canadian Harmonizing Tariff Code 8708949900
Harmonized Tariff Code (Schedule B) 8708948000
Harmonized Tariff Code (HTS) 8708947550
Refurbished Part N
Remanufactured Part N
UPC 00080066421247
VMRS Code 015004019
UNSPSC 25174205

Part Interchanges

MOOG ES800035 Cross Reference

We have 1 alternatives for the ES800035 by MOOG:

Fits Vehicles

  • Kia Sorento (2011-2013)
  • Hyundai Veracruz (2007-2012)
  • Hyundai Santa Fe (2007-2012)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
