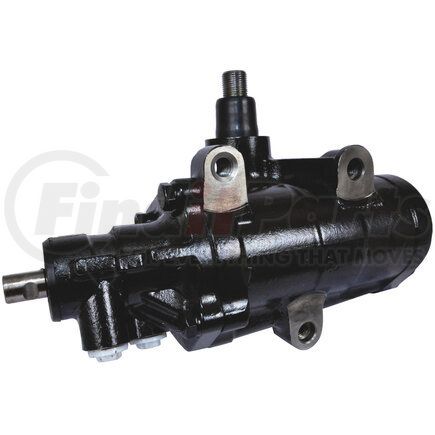

A-1 Cardone 97-7632GB - Steering Gear
- Part Number
- 97-7632GB
- Manufacturer
- A-1 CARDONE
- Description
-
Steering Gear
details
$44999
In stock
limited availability at this price!
. Learn more
A-1 CARDONE part description
Product Description
Steering Gear
Application Summary
Ford E-150 2014-08, E-150 Econoline 2008, E-250 2014-08, E-350 Super Duty 2018-08, E-450 Super Duty 2018-08, Econoline Van 2014-10, Econoline Wagon 2014-10
Features & Benefits
- 100% computerized testing at load ensures reliable performance.
- All rotating and actuating components are properly hardened, ground and polished to ensure longevity of the components and their respective seals.
- All rack & pinion/gearbox units meet or exceed O.E. form, fit and function.
- Computerized spool valve balancing ensures exceptional feel and return ability.
- Environmentally-friendly coating provides a clean appearance and prevents rust.
- Supplied with O.E.-grade seals, O-rings and boots to provide optimal sealing performance and longevity.
Steering Gear, Gear Box, New Gear Box, New Steering Gear, Steering Sector
Product Attributes
| Color | Black |
| Package Contents | Gear; Instruction Sheet; Instruction Tag; Sealing Kit |
| Product Condition | New |
| Number of Mounting Holes | 3 |
| Hose Port Type | O-Ring |
| Total Turns Lock to Lock | 4.06 |
| Pressure Port Thread Size | 1/2-20 |
| Return Port Thread Size | 5/8-18 |
| Pump Rotation | Reverse |
| Pitman Arm Included | No |
| Input Shaft Type | Double Flat |
| Steering Box Type | Power |
| E-waste | No |
| Input Shaft Diameter (in) | 0.812 |
| Input Shaft Diameter (mm) | 20.62 |
| Output Shaft Diameter (mm) | 21.95 |
| Output Shaft Diameter (in) | 0.864 |
| Features and Benefits | Supplied with O.E. grade seals and O-rings to provide optimal sealing performance and longevity. |
| Hose Port Type | O-Ring |
| Input Shaft Diameter | 0.812 IN |
| 465 | 20.62 MM |
| Mounting Hardware Included | No |
| 2313 | 1.375 IN |
| 2313 | 34.92 MM |
| Output Shaft Spline Quantity | 36 |
| 6523 | 21.95 MM |
| 6523 | 0.864 IN |
| Power Assisted | Yes |
| 9605 | 0.486 IN |
| 9605 | 12.34 MM |
| 9604 | 1/2-20 |
| 9606 | 0.618 IN |
| 9606 | 15.7 MM |
| 9603 | 5/8-18 |
| Total Turns Lock To Lock | 4.0625 |
| Type | Power |
| Splined Input Shaft | No |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | N |
| Warranty Distance UOM | MI |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947000 |
| UPC | 00884548324312 |
Part Interchanges
Fits Vehicles
- Ford Econoline Wagon (2010-2014)
- Ford Econoline Van (2010-2014)
- Ford E-150 Econoline (2008)
- Ford E-450 Super Duty (2008-2018)
- Ford E-350 Super Duty (2008-2018)
- Ford E-150 (2008-2014)
- Ford E-250 (2008-2014)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
