STANDARD IGNITION part description

Product Description

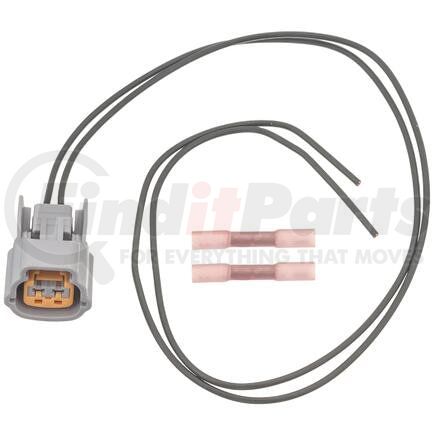

Camshaft Sensor Connector

Features & Benefits

  • Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
  • The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
  • The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
  • All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
  • Offering thousands of high-quality pigtails and sockets for nearly every electrical job.

Product Attributes

Bend Angle (Deg.) 0
Connector Gender Male
Connector Quantity 1
Connector Shape Rectangular
Gauge 18 ga.
Harness Length - cm 43
Harness Length - inches 17
Housing Length (in) 1
Terminal Gender Female
Terminal Quantity 2
Terminal Type Blade
Wire Quantity 2
Water Resistant No
Weatherproof Sealed Yes
Wire Gauge (ga) 18

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8536908585
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00033086638072

Part Interchanges

Fits Vehicles

  • Nissan Tsuru (1992-1997)
  • Nissan Tsubame (1993-1994)
  • Nissan NX (1991-1993)
  • Nissan Altima (1993-1997)
  • Nissan Urvan (2000-2008)
  • Nissan Lucino (1996-2000)
  • Nissan 200SX (1995-1998)
  • INFINITI QX4 (1997-2003)
  • Nissan Pickup (1995-1997)
  • Nissan Pathfinder (1996-2002)
  • Nissan Maxima (1995-2001)
  • INFINITI J30 (1995-1997)
  • INFINITI I30 (1996-2001)
  • Nissan 300ZX (1996)
  • Nissan 240SX (1991-1998)
  • Nissan Sentra (1991-2001)
  • INFINITI Q45 (1997-1999)
  • INFINITI G20 (1994-1995, 2000-2002)
  • Nissan Almera (2001-2005)
