CENTRIC part description

Product Description

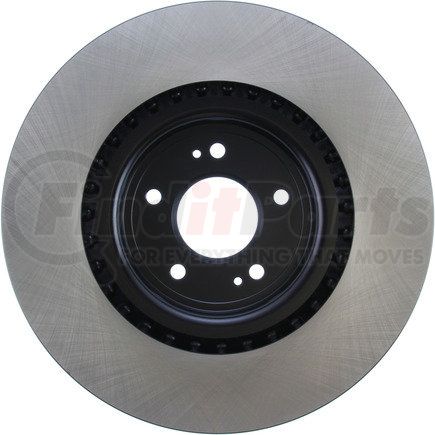

Centric GCX Rotor with Full Coating and High Carbon Content

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Product Attributes

Weight [cntrc] Lbs 25.300
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Vane Style [cntrc] Pillar
Hat Id [cntrc] Mm 159.700
Hat Id [cntrc] In 6.287
Product Grade [cntrc] Premium
Weight [cntrc] Kgs 11.500
Misc Holes [cntrc] 2
Discard Thickness 1.181 IN
Discard Thickness 30.000 MM
Nominal Thickness 32.000 MM
Nominal Thickness 1.260 IN
Disc Finish Fully Coated
Hat Finish Coated
Overall Height 43.700 MM
Overall Height 1.720 IN
Outside Diameter 13.780 IN
Outside Diameter 350.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 69.000 MM
Center Hole Diameter 2.717 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 12.500 MM
Stud/Lug Hole Diameter 0.492 IN

Additional Information

NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 00889590390261

Fits Vehicles

  • Mitsubishi Lancer (2008-2015)
