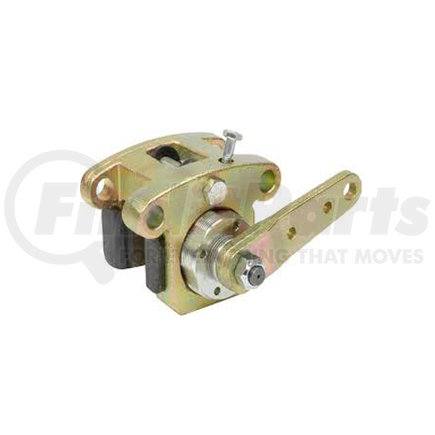

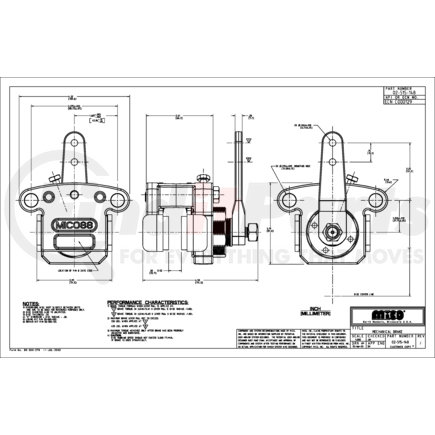

Name: MICO 02-515-148 Disc Brake Kit - Mech Disc Brake
SKU: 02515148
Price: 236.99 USD
Availability: InStock

MICO part description

Floating caliper type brake, mechanically applied. One piece carrier. Once brake is adjusted, the lever can be mounted in any position. Ideal for secondary, emergency, and industrial applications.

Specification:

Disc Diameter: 6 inch to unlimited
Disc thickness: 0.50 inch
Total lining contact area: 6.36 inch
Caliper material: ductile iron
Caliper finish: zinc chromate yellow
Lining thickness: 0.22 inch
Usable lining thickness: 0.22 inch
Lining material: non-asbestos, lead free
Lever movement: 40 Degree either direction
Approximate weight: 4.7lb

Since 1946, MICO® has been the go-to source for off-highway brake components and systems across North America. This brand specializes in the design and manufacture of hydraulic and electrohydraulic components, controls, and brake systems for various applications, including those in the agricultural, construction, forestry, materials handling, mining, and service vehicle industry. MICO components are built using the latest in computer-aided machinery to ensure high quality and precision. Product development and engineering teams work together using cutting-edge tools and equipment to develop new designs and working prototypes to meet or exceed customer demands. A 1-year limited warranty also covers all MICO products.
