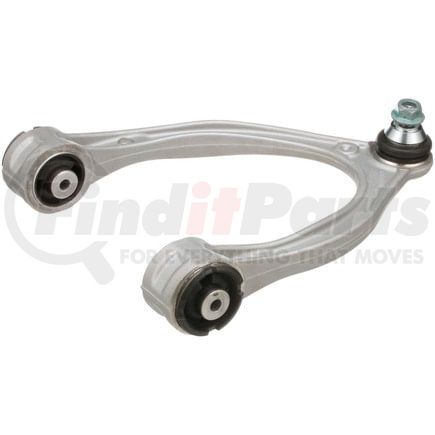

Delphi TC7816 - Control Arm and Ball Joint Assembly
$9499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 84.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 61.50 MM |
| Control Arm Maximum Length | 12.992 IN |
| Control Arm Maximum Length | 330.00 MM |
| Mounting Hole Diameter | 0.394 IN |
| Mounting Hole Diameter | 10.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Material | Aluminum |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Width | 3.307 IN |
| Ball Joint Stud Length | 2.421 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604367773 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz GLC43 AMG (2020)
- Mercedes-Benz E53 AMG (2020)
- Mercedes-Benz E63 AMG S (2020)
- Mercedes-Benz CLS53 AMG (2020)
- Mercedes-Benz CLS450 (2019-2020)
- Mercedes-Benz E450 (2019-2020)
- Mercedes-Benz GLC350e (2018-2020)
- Mercedes-Benz E400 (2017-2018)
- Mercedes-Benz E300 (2017-2019)
- Mercedes-Benz C350e (2016-2018)
- Mercedes-Benz GLC300 (2016-2019)
- Mercedes-Benz C300 (2015-2020)
- Mercedes-Benz C400 (2015)
