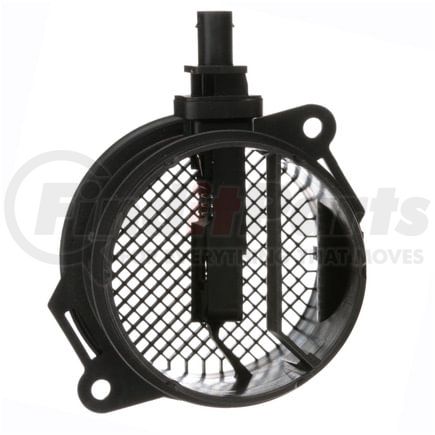

(888) 312-8812 Login SignupDELPHI AF10548 Mass Air Flow Sensor
$11799
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
DELPHI AF10548 Part Description
DELPHI AF10548 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Standard Replacement |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.386 IN |
| Inlet Connection Diameter | 86 MM |
| Outlet Connection Diameter | 3.3 IN |
| Outlet Connection Diameter | 84 MM |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 101 MM |
| Sensor Casing Width | 109 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 112.20 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 97.5 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.9 IN |
| Sensor Casing Width | 4.2 IN |
| Bolt Hole Center To Bolt Hole Center | 4.40 IN |
| Mounting Hole Diameter | 6.4 MM |
| Seal Outside Diameter | 3.8 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604365816 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10548 Part Interchanges
| Brand | Part Number |
|---|---|
| Bosch | 0280218261 |
| Spectra Premium | MA469 |
| BWD | MA1207 |
| Porsche | 958 606 125 00 |
| Volkswagen | 03H 906 461 A |
| Standard Motor Products | MAS0332, MAS0375 |
| N/A | 214718, MF21349 |
DELPHI AF10548 Fits Vehicles
- Volkswagen Passat (2014-2018)
- Volkswagen CC (2012-2016)
- Volkswagen Touareg (2011-2017)
- Porsche Cayenne (2011-2014, 2016-2018)
