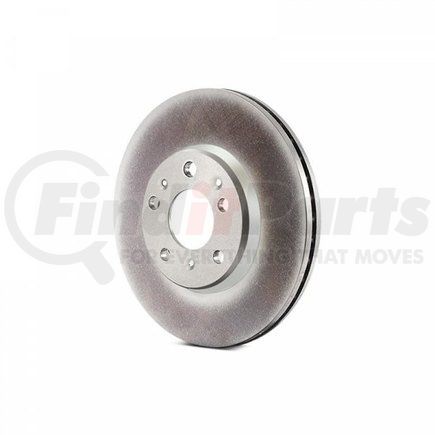

Centric 320.33144H - Centric GCX Rotor with Full Coating and High Carbon Content
$12999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Lbs | 24.900 |
| Misc Holes [cntrc] | 5 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 11.290 |
| Hat Id [cntrc] In | 5.673 |
| Hat Id [cntrc] Mm | 144.100 |
| Bearings Included | No |
| Center Hole Diameter | 65.000 MM |
| Center Hole Diameter | 2.559 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.200 MM |
| Stud/Lug Hole Diameter | 0.598 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 13.386 IN |
| Outside Diameter | 340.000 MM |
| Overall Height | 1.961 IN |
| Overall Height | 49.800 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Discard Thickness | 27.000 MM |
| Discard Thickness | 1.063 IN |
Fits Vehicles
- Audi A3 Quattro (2020, 2022)
- Audi Q3 (2020-2021)
- Volkswagen Jetta (2019-2020, 2022-2023)
- Seat Tarraco (2019-2020)
- Audi A3 (2014, 2020, 2022)
- Volkswagen Arteon (2019-2021)
- Volkswagen Golf (2016-2017, 2019-2021)
- Audi S3 (2015-2020)
- Volkswagen Tiguan (2018-2023)
- Volkswagen GTI (2015-2023)
- Volkswagen Golf R (2015-2019)
- Volkswagen CC (2012-2016)
