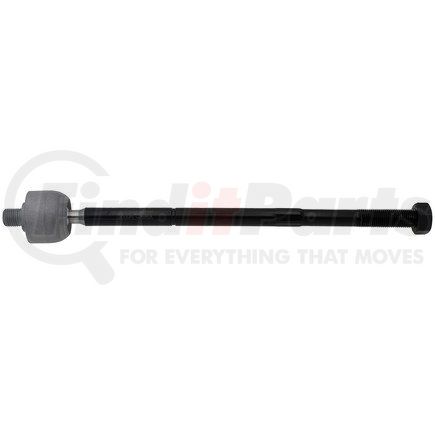

Name: Dorman TI96230XL Steering Tie Rod End
SKU: ti96230xl
Price: 29.99 USD
Availability: InStock

DORMAN part description

STEERING COMPONENTS

Product Description

Steering Tie Rod End

Application Summary

Fiat 500X 2022-16, Jeep Renegade 2022-15

Features & Benefits

Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance - WeatherShield external coating to resist corrosion

Steering, Tie, Rod, End, Ties, Rods, Ends

Product Attributes

Length	110 MM
Color	Noir
End 1 Gender	Macho
End 2 Gender	Macho
Finish	Revestidos
Pre-Greased	Oui
Grease Fitting Included	Non
Dust Boot Included	Non
Width	39 MM
Type	Recto
Mounting Hardware Included	Oui
End 2 Thread Diameter	10 MM
Height	317.6 MM
Housing Material	Acero
Tube Diameter	14 MM
Adjustable	Oui
Cone Outside Diameter	14 MM
Bearing Material	Polímero
End 1 Thread Direction	Rotar en el sentido de las agujas del reloj (derecha)
End 2 Thread Direction	Rotar en el sentido de las agujas del reloj (derecha)
Grade	Regular
Stud Type	Roscado
End 2 Thread Pitch	1.25 MM
End 1 Thread Pitch	1.25 MM
Tie Rod Material	Acero
End 1 Thread Diameter	18 MM
Bolt Length	54 mm
Bolt Thread Diameter	14 mm
Bolts Included	Non
Center Mount Hole Quantity	0
Center Mount Stud Quantity	1
End 1 Attachment Type	Roscado
End 2 Type	Rosca macho
Head Drive Type	Smooth
Material	Acero
Outside Diameter	14 mm
Package Contents	1 Nut
Thread Pitch	M1.5; M1.5
Weight	1.3 lb
Head Drive Type	Suave
Dust Boot Material	Policloropreno
Bolt Length	54 mm MM
Bolt Thread Diameter	14 mm MM
Cantidad de birlos de montaje central	1 ensamble de manguera del calentador
Contenidos del paquete	1 tuerca
Outside Diameter	14 mm MM
Thread Pitch	M1.5 mm
Weight	1.3 Lbs LB

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8302300000
UPC	00889245667410
VMRS Code	011001031
UNSPSC	25174207

Part Interchanges

Fits Vehicles

Fiat 500X (2016-2023)
Jeep Renegade (2015-2023)
