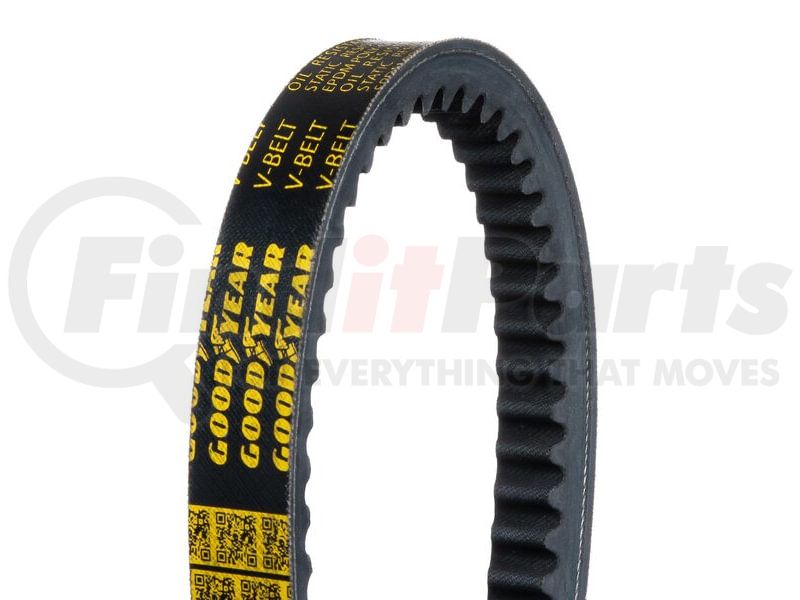

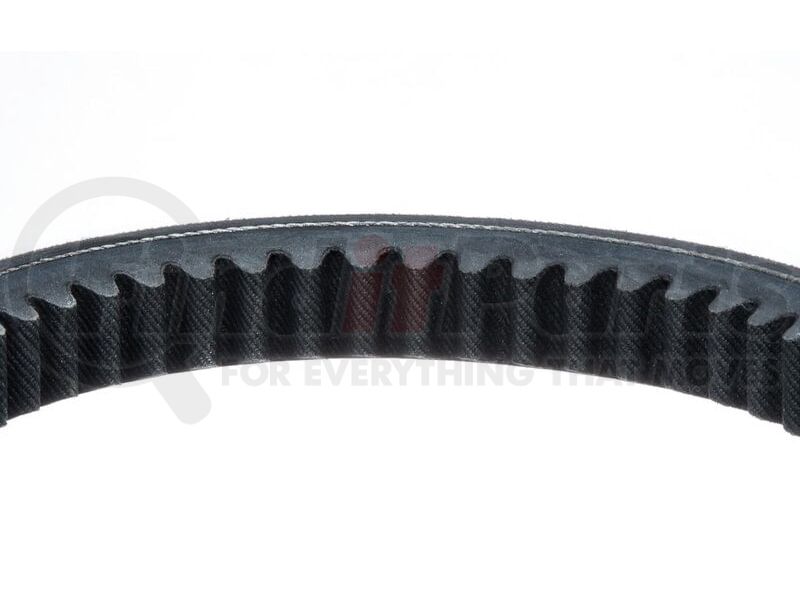

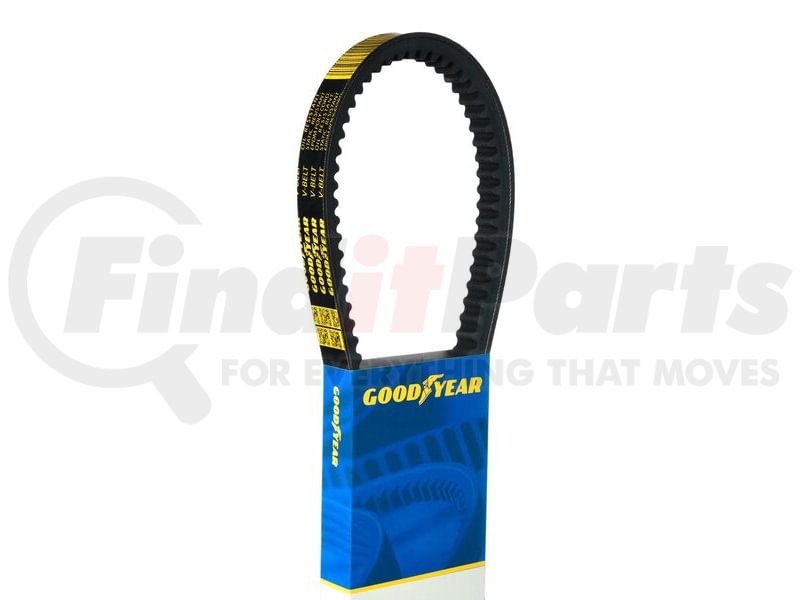

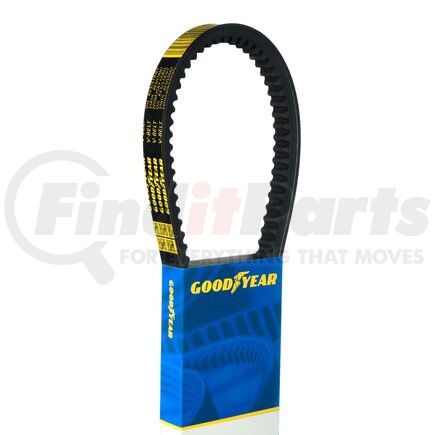

(888) 312-8812 Login SignupGOODYEAR BELTS 22517 Accessory Drive Belt - V-Belt, 51.7 in. Effective Length, EPDM
Tap to view 3 more
$2399
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GOODYEAR BELTS 22517 Part Description
Manufacturer
Product Description
V-Belt
Features & Benefits
- Meets or Exceeds OEM Specifications

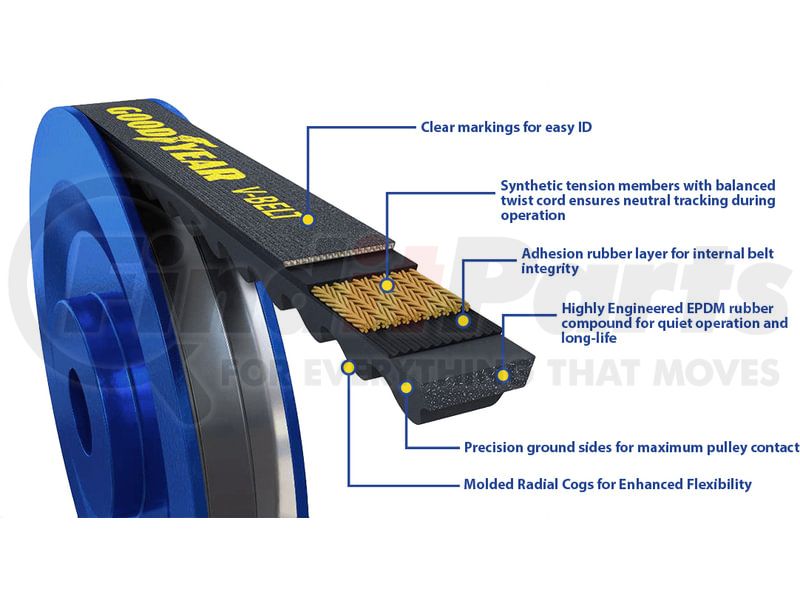

- EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
- Long-life EPDM Rubber Compound
- Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
- Radial Cog design to eliminate stress risers that can cause cracking
- Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
- Proprietary rubber formulation for quiet operation
- Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
- Precision ground sides for maximum pulley contact
- Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
- High strength tensile cords designed for minimal tension decay and low maintenance
- Limited Lifetime Warranty
GOODYEAR BELTS 22517 Specifications
Product Attributes
| Rib Angle | 36⁰ DD |
| Profile Series | 22 |
| Outside Circumference | 1328 mm |
| Outside Circumference | 52.27 in |
| Effective Length | 1313 mm |
| Effective Length | 51.7 in |
| Cord Material | Polyester |
| Item Weight (lbs) | 0.53 LB |
| Item Weight (kg) | 0.24 KG |
| Belt Material | EPDM |
| V-belt Profile | 15A |
| Top Width (mm) | 17 MM |
| Top Width (in) | 0.669 IN |
| Thickness (mm) | 10.5 mm |
| Thickness (in) | 0.413 In |
| Angle | 36 DD |
| Color | Black |
| Construction | Cogged |
| Cross Section Designation | 15A |
| Grade Type | OE Performance |
| Notched | Yes |
| Profile Type | 22 |
| Sae Standard | J636 |
| SAE Standard | J637 |
| Strand Quantity | 1 |
| Thickness | 0.413 IN |
| Thickness | 10.5 MM |
| Top Cogged | No |
| Top Width | 0.669 in |
| Top Width | 17 mm |
| Type | Automotive V-Belt |
Additional Information
| Stock Status | S |
| Warranty Time | 1 |
| Warranty Special | 1 Year Limited Warranty |
| Warranty Time UOM | YR |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 4010390000 |
| Harmonized Tariff Code (Schedule B) | 4010390000 |
| Canadian Harmonizing Tariff Code | 4010390000 |
| UPC | 00195199101512 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GOODYEAR BELTS 22517 Part Interchanges
| Brand | Part Number |
|---|---|
| Gates | TR22517 |
| Dayco | 22520 |
| Continental | 22524 |
GOODYEAR BELTS 22517 Fits Vehicles
- Peterbilt 376 (1991-1992, 1994)
- Peterbilt 372 (1992-1994)
- Peterbilt 379 (1990-1994)
- Peterbilt 377 (1990-1994)
- Peterbilt 357 (1990-1994)
- Peterbilt 378 (1990-1994)
- Suzuki Aerio (2002)
- Hino FA1415 (1993-1995)
- Hino FB1715 (1993-1995)
- Hino FB15 (1992)
- Hino FA15 (1992)
- Hino FA14 (1989-1991)
- Hino FB14 (1988-1991)
- UD 3000 (1996-1997)
- UD 3000HD (1994)
- UD 1800 (1995-1998)
- UD 2300 (1994-1997)
- UD 2800 (1994)
- UD 2600 (1994-1997)
- UD 2000 (1994)
GOODYEAR BELTS 22517 Cross References
We have 3 alternatives for the 22517 by GOODYEAR BELTS:
