Centric 320.66036F - Centric GCX Rotor with Full Coating
$3999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

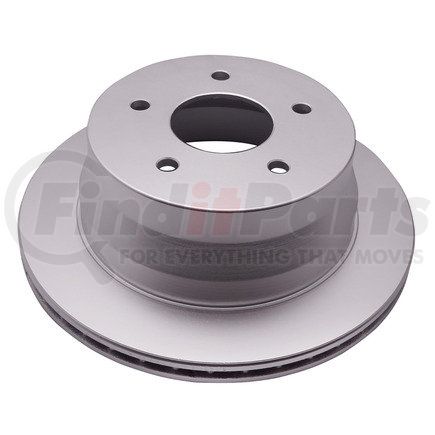

Centric GCX Rotor with Full Coating
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 191.500 |
| Max Pb Drum Dia [cntrc] In | 7.539 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.270 |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 16.000 |
| Stud/Lug Hole Diameter | 0.520 IN |
| Stud/Lug Hole Diameter | 13.200 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.700 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 7.484 IN |
| Nominal Drum Diameter | 190.100 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 295.000 MM |
| Outside Diameter | 11.614 IN |
| Overall Height | 3.740 IN |
| Overall Height | 95.000 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.500 MM |
Fits Vehicles
- Isuzu Hombre (1998-2000)
- Chevrolet S10 (1998-2004)
- Oldsmobile Bravada (1997-2001)
- GMC Sonoma (1998-2003)
- GMC Jimmy (1997-2001, 2004-2005)
- Chevrolet Blazer (1997-2005)
