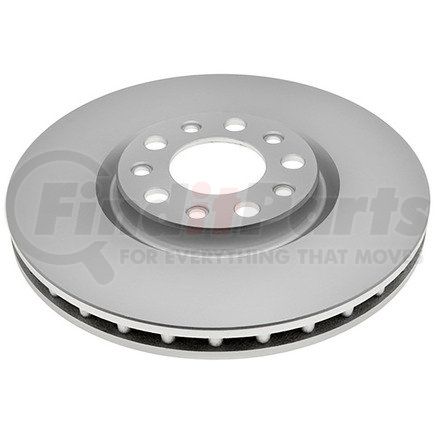

Centric 320.63080F - Centric GCX Rotor with Full Coating
$7349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| Hat Id [cntrc] In | 5.362 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 7.960 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 17.550 |
| Hat Id [cntrc] Mm | 136.200 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 40.000 MM |
| Overall Height | 1.575 IN |
| Outside Diameter | 305.000 MM |
| Outside Diameter | 12.008 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70.000 MM |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.600 MM |
| Stud/Lug Hole Diameter | 0.654 IN |
Fits Vehicles
- Chrysler 200 (2015-2017)
- Jeep Compass (2017-2022)
- Fiat 500X (2016-2022)
- Jeep Renegade (2015-2022)
- Dodge Dart (2013-2016)
