Centric 320.47028F - Centric GCX Rotor with Full Coating
$5449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

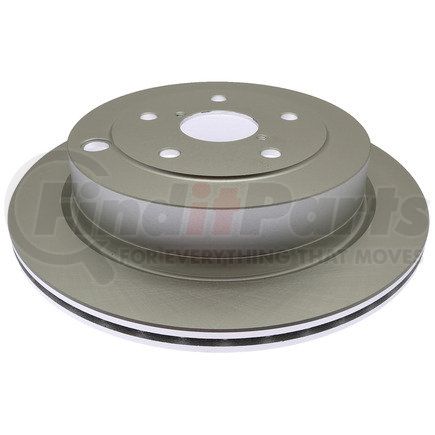

Centric GCX Rotor with Full Coating
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 15.700 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] In | 8.307 |
| Weight [cntrc] Kgs | 7.140 |
| Max Pb Drum Dia [cntrc] Mm | 211.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 16.000 MM |
| Discard Thickness | 0.630 IN |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 67.700 MM |
| Overall Height | 2.665 IN |
| Outside Diameter | 12.587 IN |
| Outside Diameter | 319.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 8.268 IN |
| Nominal Drum Diameter | 210.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
Fits Vehicles
- Subaru B9 Tribeca (2006-2007)
- Subaru Tribeca (2008-2014)
