Centric 320.45094F - Centric GCX Rotor with Full Coating
$7249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

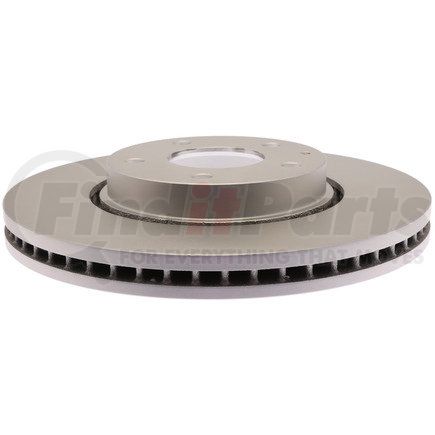

Centric GCX Rotor with Full Coating
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 19.150 |
| Hat Id [cntrc] Mm | 146.200 |
| OEM Vane Count [cntrc] | 53 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 5.756 |
| Notes [cntrc] | Similar to 120.45084 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 8.680 |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 51.600 MM |
| Overall Height | 2.031 IN |
| Outside Diameter | 296.800 MM |
| Outside Diameter | 11.685 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 114.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.488 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.200 MM |
| Stud/Lug Hole Diameter | 0.520 IN |
Fits Vehicles
- Mazda 6 (2019-2021)
- Mazda CX-5 (2016-2021)
