CENTRIC part description

Product Description

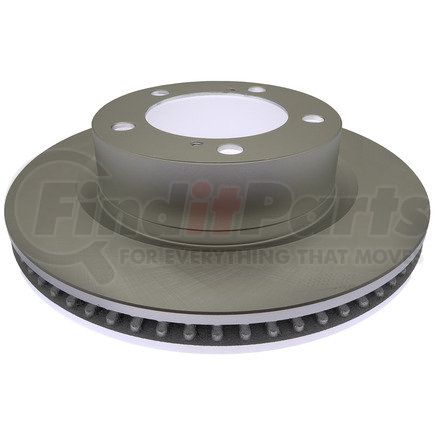

Centric GCX Rotor with Full Coating

Product Attributes

California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Vane Style [cntrc] Straight
Weight [cntrc] Lbs 24.500
Weight [cntrc] Kgs 11.140
Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 2
Product Grade [cntrc] Premium
Stud/Lug Hole Diameter 0.654 IN
Stud/Lug Hole Diameter 16.600 MM
Stud/Lug Hole Quantity 5
Mounting Bolt Hole Circle Diameter 5.906 IN
Mounting Bolt Hole Circle Diameter 150.000 MM
Center Hole Diameter 112.000 MM
Center Hole Diameter 4.409 IN
Bearings Included No
Solid Or Vented Type Rotor Vented
Surface Type Smooth
ABS Tone Ring Included No
Outside Diameter 340.000 MM
Outside Diameter 13.386 IN
Overall Height 3.280 IN
Overall Height 83.300 MM
Hat Finish Coated
Disc Finish Fully Coated
Nominal Thickness 1.260 IN
Nominal Thickness 32.000 MM
Discard Thickness 29.000 MM
Discard Thickness 1.142 IN

Fits Vehicles

  • Lexus LX570 (2008-2011, 2013-2016)
  • Toyota Land Cruiser (2008-2011, 2013-2020)
