CENTRIC part description

Product Description

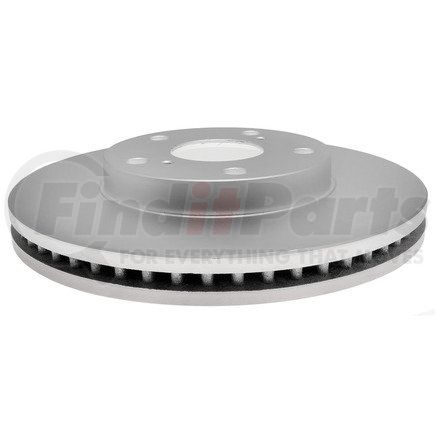

Centric GCX Rotor with Full Coating

Product Attributes

Weight [cntrc] Kgs 7.270
Product Grade [cntrc] Premium
Weight [cntrc] Lbs 16.000
Misc Holes [cntrc] 2
Vane Style [cntrc] Straight
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Discard Thickness 26.000 MM
Discard Thickness 1.024 IN
Nominal Thickness 28.000 MM
Nominal Thickness 1.102 IN
Disc Finish Fully Coated
Hat Finish Coated
Overall Height 49.200 MM
Overall Height 1.937 IN
Outside Diameter 10.827 IN
Outside Diameter 275.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 2.441 IN
Center Hole Diameter 62.000 MM
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 14.750 MM
Stud/Lug Hole Diameter 0.581 IN

Fits Vehicles

  • Toyota Solara (1999-2003)
  • Toyota Sienna (1998-2003)
  • Toyota Avalon (1995-2004)
  • Lexus ES300 (1992-2001)
  • Toyota Camry (1992-2006)
