Centric 320.34097F - Centric GCX Rotor with Full Coating
$7149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

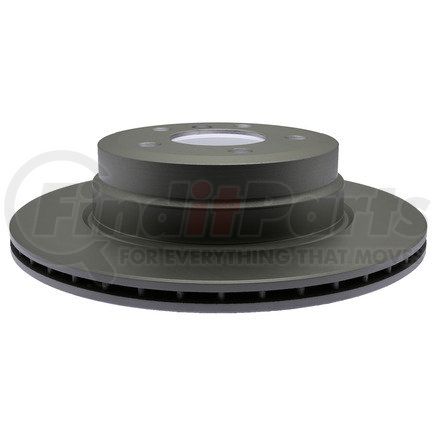

Centric GCX Rotor with Full Coating
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 6.843 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 1 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] Mm | 173.800 |
| Weight [cntrc] Lbs | 17.750 |
| Weight [cntrc] Kgs | 8.070 |
| Stud/Lug Hole Diameter | 0.646 IN |
| Stud/Lug Hole Diameter | 16.400 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 185.000 MM |
| Nominal Drum Diameter | 7.283 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320.000 MM |
| Overall Height | 3.102 IN |
| Overall Height | 78.800 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Discard Thickness | 18.400 MM |
| Discard Thickness | 0.724 IN |
Fits Vehicles
- BMW X6 (2010-2019)
- BMW X5 (2007-2018)
