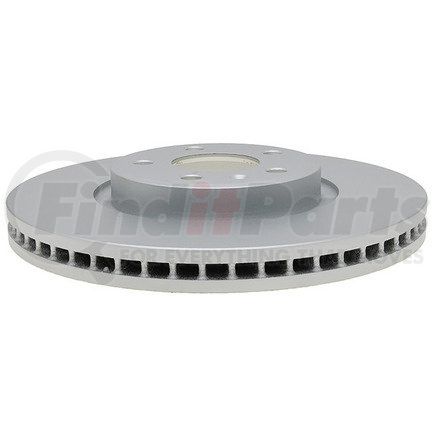

Centric 320.33136F - Centric GCX Rotor with Full Coating
$7549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| Vane Style [cntrc] | Pillar |
| Hat Id [cntrc] In | 5.882 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 22.950 |
| Weight [cntrc] Kgs | 10.400 |
| Hat Id [cntrc] Mm | 149.400 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Stud/Lug Hole Diameter | 0.598 IN |
| Stud/Lug Hole Diameter | 15.200 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 320.000 MM |
| Outside Diameter | 12.598 IN |
| Overall Height | 2.055 IN |
| Overall Height | 52.200 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28.000 MM |
Fits Vehicles
- Audi A6 (2012-2013)
- Audi A6 Quattro (2013, 2019)
- Audi A7 Quattro (2012-2013, 2018)
- Audi A5 Quattro (2012-2017)
- Audi A5 (2012-2014, 2016)
- Audi A4 Quattro (2012-2016)
- Audi A4 (2012-2016)
- Audi Q5 (2011-2017)
- Audi allroad (2013-2016)
- Audi A4 allroad (2013-2016)
