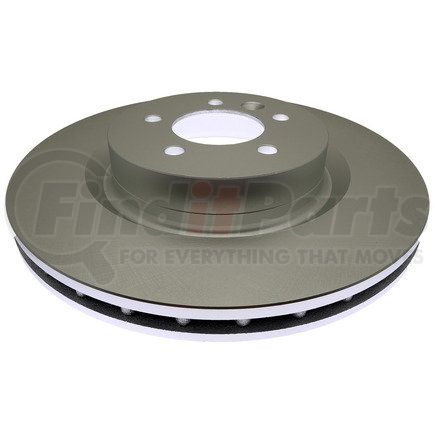

Centric 320.22011F - Centric GCX Rotor with Full Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
Weight [cntrc] Kgs | 12.020 |
California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
Product Grade [cntrc] | Premium |
Hat Id [cntrc] Mm | 174.600 |
Hat Id [cntrc] In | 6.874 |
Vane Style [cntrc] | Pillar |
Weight [cntrc] Lbs | 26.450 |
Disc Mounting [cntrc] | Floating |
Misc Holes [cntrc] | 1 |
Discard Thickness | 1.063 IN |
Discard Thickness | 27.000 MM |
Nominal Thickness | 1.181 IN |
Nominal Thickness | 30.000 MM |
Disc Finish | Fully Coated |
Hat Finish | Coated |
Overall Height | 62.300 MM |
Overall Height | 2.453 IN |
Outside Diameter | 360.000 MM |
Outside Diameter | 14.173 IN |
ABS Tone Ring Included | No |
Surface Type | Smooth |
Solid Or Vented Type Rotor | Vented |
Bearings Included | No |
Center Hole Diameter | 79.000 MM |
Center Hole Diameter | 3.110 IN |
Mounting Bolt Hole Circle Diameter | 120.000 MM |
Mounting Bolt Hole Circle Diameter | 4.724 IN |
Stud/Lug Hole Quantity | 5 |
Stud/Lug Hole Diameter | 15.000 MM |
Stud/Lug Hole Diameter | 0.591 IN |
Fits Vehicles
- Land Rover Discovery (2017)
- Land Rover Range Rover (2014-2017)
- Land Rover LR4 (2010-2016)
- Land Rover Range Rover Sport (2006-2017)
