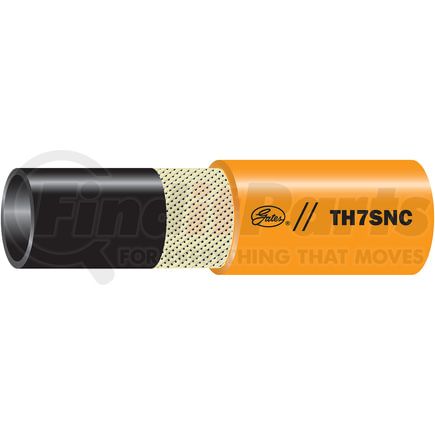

Gates 85668 - TH7SNC Non-Conductive Hydraulic Hose - SAE 100R7
$29249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
TH7SNC Non-Conductive Hydraulic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Orange color TH7SNC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test; maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant
Product Attributes
| Product Description | 6TH7SNCX50FT |
| Product Type | TH7SNC Non-Conductive Hydraulic Hose - SAE 100R7 |
| Industrial Description | 6TH7SNCX50FT |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium |
| Maximum Working Pressure | 2250 PS |
| Burst Pressure | 9000 PS |
| Temperature Rating | -65 Deg. F to + 200 Deg. F (-54 Deg. C to +93 Deg. C) (For Petroleum & Synthetic Oils) |
| 9941 | 6 |
| Inside Diameter | .385 IN |
| Outside Diameter | .651 IN |
| 9879 | 2 IN |
| Tube Description | Nylon |
| Hose Material | Nylon |
| Reinforcement Material | Synthetic Fiber |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| 9856 | MegaCrimp |
| 9453 | 100R7 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| UPC | 00770075715115 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
