GATES 85013 Part Description
Manufacturer
Product Description

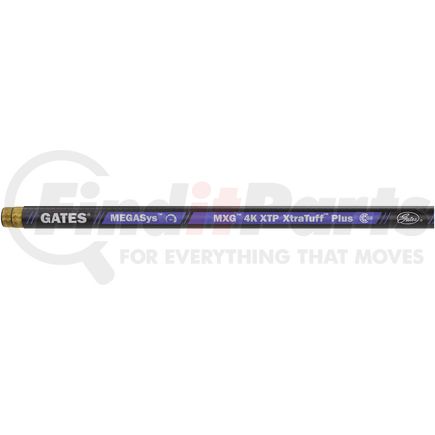

MXG 4K Wire Braid Hose - SAE 100R12 - XtraTuff Plus Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff Plus cover on MXG 4K hose comes standard and offers 25 times the abrasion resistance of standard covers, as well as superior ozone resistance
- Compact construction with excellent flexibility and lower force-to-bend for faster and more ergonomic installation (force-to-bend is 40 percent better and OD is 9 percent smaller)
- 30 percent lighter weight for easier handling and installation
- Exceeds all criteria of SAE 100R19 and ISO 18752 280DC; exceeds performance criteria of SAE 100R12, EN 856 R12, ISO 3862 R12 (Size -16 also exceeds EN 856 4SP performance requirements)
- MXG4K-XTP passes SAE J1754 Class A cool-down requirements with GlobalSpiral couplings and meets Flame Resistant Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
GATES 85013 Specifications
Product Attributes
| Product Type | MXG 4K Wire Braid Hose - SAE 100R12 - XtraTuff Plus Cover |
| Industrial Description | 10MXG4K-XTPX50FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 4060 PS |
| Burst Pressure | 16000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 50 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .99 IN |
| Bend Radius | 3.9 |
| Tube Description | Black, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braid Layers, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Nitrile - Type C - Oil, Flame, Abrasion & Weather Resistant - XtraTuff Plus Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral |
| SAE Standard | 100R12 |
| EN Standard | 856 R12 |
| ISO Standard | 18752 280DC, 3862 R12 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075804710 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85013 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | 85013 |
