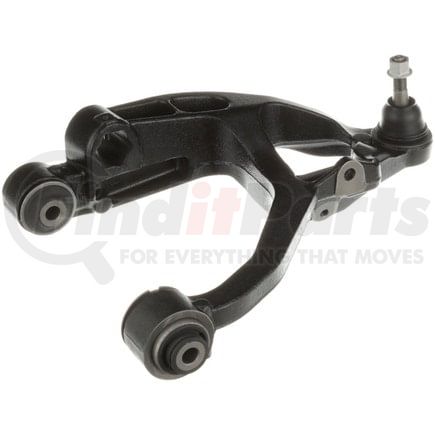

Delphi TC6314 - Control Arm and Ball Joint Assembly
$10849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 380.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 41.50 MM |
| Control Arm Maximum Length | 485.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 16.40 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| 9532 | 377.00 MM |
| Bushing Inside Diameter | 16.40 MM |
| Bushing Length | 80.10 MM |
| Control Arm Maximum Width | 14.961 IN |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Stud Length | 1.634 IN |
| Control Arm Maximum Length | 19.094 IN |
| Mounting Hole Diameter | 0.646 IN |
| 9532 | 14.843 IN |
| Bushing Inside Diameter | 0.646 IN |
| Bushing Length | 3.154 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604335314 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Chrysler Aspen (2007-2009)
- Dodge Durango (2004-2009)
