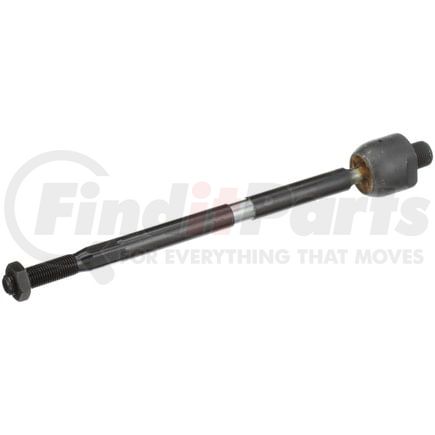

Delphi TA6486 - Tie Rod End
$2749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Length | 303.30 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | No |
| End 2 Thread Diameter | 12.99 MM |
| Height | 38.00 MM |
| Housing Material | Steel |
| Tube Diameter | 10.50 MM |
| Adjustable | No |
| Greasable | No |
| Cone Outside Diameter | 14.00 MM |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Regular |
| End 2 Thread Pitch | 44 MM |
| End 1 Thread Pitch | 18 MM |
| Length Stud Center to End | 149.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16.99 MM |
| Shank Length | 14.00 MM |
| Stud Length | 14.00 MM |
| Grade Type | Standard |
| Shank Length | 0.551 IN |
| Stud Length | 0.551 IN |
| End 2 Thread Diameter | 0.511 IN |
| 36 | 0.410 IN |
| 662 | 0.551 IN |
| Length Stud Center to End | 5.866 IN |
| End 1 Thread Diameter | 0.669 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TW |
| UPC | 00689604365694 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Honda CR-V (2017-2021)
