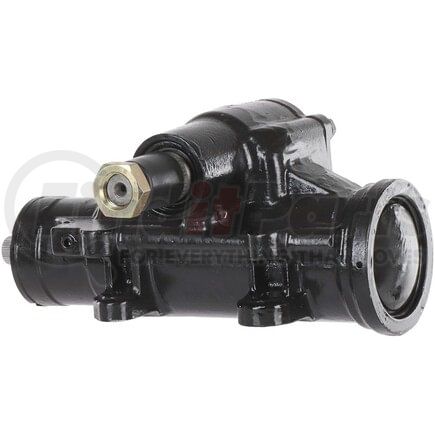

A-1 Cardone 97-6539GB - Steering Gear
- Part Number
- 97-6539GB
- Manufacturer
- A-1 CARDONE
- Description
-
Steering Gear
details
$40499
In stock
limited availability at this price!
. Learn more
A-1 CARDONE part description
Product Description
Steering Gear
Application Summary
Ford Country Sedan 1969-65, Country Squire 1969-67, Custom 1969-65, Custom 500 1969-65, Elite 1976-75, Galaxie 1967-65, Galaxie 500 1969-65, Gran Torino 1976-72, LTD 1969-67, LTD II 1979-77, Mustang 1973-71, Ranch Wagon 1969-65, Ranchero 1979-72, Thunderbird 1979-77, Torino 1976-72; Mercury Colony Park 1965, Commuter 1965, Cougar 1979-71, Marauder 1965, Montclair 1965, Montego 1975, Monterey 1965, Park Lane 1965
Features & Benefits
- 100% computerized testing at load ensures reliable performance.
- All rotating and actuating components are properly hardened, ground and polished to ensure longevity of the components and their respective seals.
- All rack & pinion/gearbox units meet or exceed O.E. form, fit and function.
- Computerized spool valve balancing ensures exceptional feel and return ability.
- Environmentally-friendly coating provides a clean appearance and prevents rust.
- Supplied with O.E.-grade seals, O-rings and boots to provide optimal sealing performance and longevity.
Steering Gear, Gear Box, New Gear Box, New Steering Gear, Steering Sector
Product Attributes
| Color | Black |
| Package Contents | Gear; Instruction Sheet; Instruction Tag |
| Product Condition | New |
| Input Shaft Spline Count | 31 |
| Number of Mounting Holes | 3 |
| Hose Port Type | Seat |
| Total Turns Lock to Lock | 4.13 |
| Pressure Port Thread Size | 11/16-18 |
| Return Port Thread Size | 5/8-18 |
| Pump Rotation | Standard |
| Pitman Arm Included | No |
| Input Shaft Type | Splined, Grooved |
| Steering Box Type | Power |
| E-waste | No |
| Input Shaft Diameter (in) | 0.88 |
| Input Shaft Diameter (mm) | 22.23 |
| Output Shaft Diameter (mm) | 21.95 |
| Output Shaft Diameter (in) | 0.864 |
| Features and Benefits | Supplied with O.E. grade seals and O-rings to provide optimal sealing performance and longevity. |
| Hose Port Type | Seat |
| 465 | 22.23 MM |
| Input Shaft Diameter | 0.88 IN |
| Input Shaft Spline Quantity | 31 |
| Mounting Hardware Included | No |
| 2313 | 31.75 MM |
| 2313 | 1.25 IN |
| Output Shaft Spline Quantity | 32 |
| 6523 | 21.95 MM |
| 6523 | 0.864 IN |
| Power Assisted | Yes |
| 9605 | 17.45 MM |
| 9605 | 0.687 IN |
| 9604 | 11/16-18 |
| 9606 | 0.618 IN |
| 9606 | 15.7 MM |
| 9603 | 5/8-18 |
| Total Turns Lock To Lock | 4.125 |
| Type | Power |
| Splined Input Shaft | Yes |
| FAQ_Q1 | Should the power steering hoses be replaced? |
| FAA_A1 | Hoses should be replaced if they appear brittle or if there are any kinks or leaks. |
| FAQ_Q2 | What is the difference between a fast ratio and a slow ratio gear box? |
| FAA_A2 | The difference is the orientation of the teeth on the pitman shaft and power piston. Variable teeth will have a faster ratio than non-variable teeth. |
| FAQ_Q3 | How can I tell if my gear box is a standard or reverse rotation? |
| FAA_A3 | In a standard rotation gear box, the input and pitman shaft rotate in the same direction. The shafts turn in opposite directions on a reverse rotation gear box. |
| FAQ_Q4 | Can I adjust my original gear box if it has a lot of play? |
| FAA_A4 | Not recommended. The preload is adjusted at the time of assembly. If excessive play is present, it’s due to wear of internal components. If adjustment is attempted, it could lead to binding. |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | N |
| Warranty Distance UOM | MI |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708945000 |
| UPC | 00884548286054 |
Fits Vehicles
- Ford Custom (1965-1969)
- Mercury Park Lane (1965)
- Mercury Monterey (1965)
- Mercury Montclair (1965)
- Mercury Marauder (1965)
- Mercury Commuter (1965)
- Mercury Colony Park (1965)
- Ford Ranch Wagon (1965-1969)
- Ford Mustang (1971-1973)
- Ford LTD (1967-1969)
- Ford Galaxie 500 (1965-1969)
- Ford Galaxie (1965-1967)
- Ford Custom 500 (1965-1969)
- Ford Country Squire (1967-1969)
- Ford Country Sedan (1965-1969)
- Mercury Montego (1975)
- Mercury Cougar (1971-1979)
- Ford Torino (1972-1976)
- Ford Thunderbird (1977-1979)
- Ford Ranchero (1972-1979)
- Ford LTD II (1977-1979)
- Ford Gran Torino (1972-1976)
- Ford Elite (1975-1976)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
