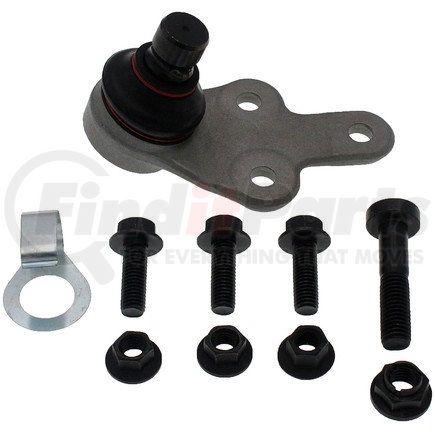

Dorman BJ86023XL - Suspension Ball Joint
$2799
MSRP: $91.97
Save: $63.98
In stock
limited availability at this price!
. Learn more
DORMAN part description
Product Description
Suspension Ball Joint
Application Summary
Ford Focus 2018-12, Ford Transit Connect 2022-14, Volvo V40 2019-14, Volvo V40 Cross Country 2018-13
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
Product Attributes
| Material | Acero |
| Maximum Outside Diameter | 56.06 MM |
| Stud Thread Diameter | 0.5 IN |
| Castle Nut Included | Oui |
| Grease Fitting Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Type | Con perno |
| Cotter Pin Included | Oui |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Bolt Length | 25.4 MM |
| Washers Included | Non |
| Nuts Included | Oui |
| Mounting Hole Quantity | M6 -1.0 |
| Adjustable | Non |
| Greasable | Oui |
| Stud Thread Length | 23 MM |
| Wrench Size | 21 mm MM |
| Stud Type | Cónico |
| Mounting Type | Con perno |
| Distance Between Mounting Holes | 44.68 MM |
| Dust Boot Material | Policloropreno |
| Bushing Quantity | 0 |
| Mounting Bolt Head Diameter | 11.7 MM |
| Mounting Bolts Included | Oui |
| Mounting Bolt Thread Pitch | 24 MM |
| Mounting Bolt Thread Length | 25.4 MM |
| Mounting Bolt Thread Diameter | 0.312 IN |
| Mount Plate Included | Oui |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 1.59 IN |
| Stud Tapered End 2 Diameter | 21.4 MM |
| Stud Tapered End 1 Diameter | 17.95 MM |
| Stud Thread Pitch | 1.5 MM |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 6 Nuts |
| Thread Pitch | M1.5 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Height | 85.03 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 6 tuercas |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1,5mm mm |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 4016995010 |
| UPC | 00669810728391 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Volvo V40 (2014-2019)
- Volvo V40 Cross Country (2013-2018)
- Ford Transit Connect (2014-2022)
- Ford Focus (2012-2018)
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
