ICON 59926P Part Description
Manufacturer
Product Description

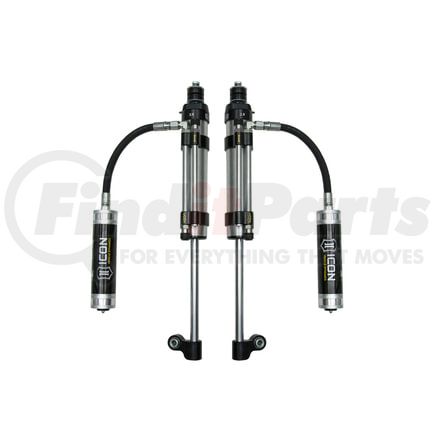

05-23 TACOMA RXT REAR 2.5 OMEGA RR PAIR
Features & Benefits
- ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- Bypass tubes are replaceable in the event of damage
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
TECH NOTE: ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
RXT RR 2.5 OMEGA RR PR
ICON 59926P Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Add-on Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | Yes |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Prop 65 Warning | Yes |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.5 in |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Title | ICON 2005-2023 Toyota Tacoma, Rear, RXT 2.5 Omega Bypass Remote Reservoir Shocks, Pair |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
Additional Information
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103404844 |
ICON 59926P Fits Vehicles
- Toyota Tacoma (2005-2023)
