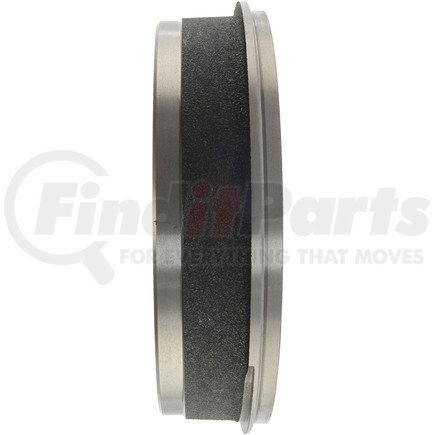

Centric 123.44046 - C-Tek Standard Brake Drum
$7349
MSRP: $81.04
Save: $7.55
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 8 |
| Weight [cntrc] Kgs | 9.455 |
| Weight [cntrc] Lbs | 20.800 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 108.000 |
| Hub Hole / Register [cntrc] In | 4.252 |
| Height [cntrc] Mm | 73.700 |
| Height [cntrc] In | 2.902 |
| Friction Surface Width [cntrc] Mm | 61.700 |
| Friction Surface Width [cntrc] In | 2.429 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 256.000 MM |
| Maximum Brake Diameter (Discard) | 10.079 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 306.000 MM |
| Outside Diameter | 12.047 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.400 MM |
| Mounting Hole Diameter | 0.567 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890593553 |
Part Interchanges
CENTRIC 123.44046 Cross Reference
We have 1 alternatives for the 123.44046 by CENTRIC:
Fits Vehicles
- Toyota Tacoma (2005-2023)
