GATES 48R4867 Part Description
Manufacturer
Product Description

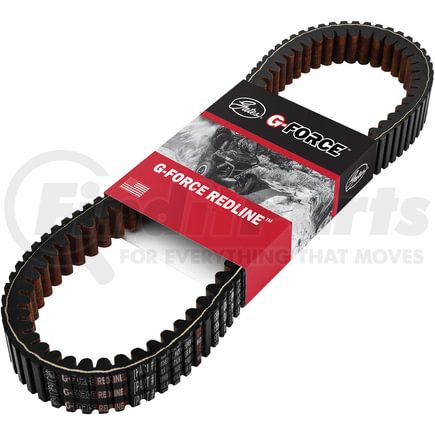

G-Force Redline Continuously Variable Transmission (CVT) Belt
Application Summary
2020 Tracker, XTR1000, 998cc, Drive
Features & Benefits
- Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments as well as on race vehicles
GATES 48R4867 Specifications
Product Attributes
| Type | Power Sport Specialty High Performance CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 26 |
| Top Width | 1.482 in |
| Pitch Width | 1.406 IN |
| Outside Circumference | 49.84 in |
| Pitch Length | 48.666 IN |
| Thickness | .627 IN |
| Construction | Double Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Bottom Material | Yes |
| Color | Black |
| Grade Type | OE Improved |
| Top Width | 37.6 mm |
| Pitch Width | 36 MM |
| Outside Circumference | 1266 mm |
| Pitch Length | 1236 MM |
| Thickness | 15.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00770075813866 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 48R4867 Part Interchanges
| Brand | Part Number |
|---|---|
| Arctic Cat | 0823-529 |
| NAPA Belts/Hose | 48C4867, 48G4867, 48R4867 |
| Timken | UA489, UXP489 |
GATES 48R4867 Fits Vehicles
- Arctic Cat Wildcat XX Black Hills Edition (2023-2024)
- Tracker XTR1000 (2020)
- Arctic Cat Wildcat XX LTD (2022-2024)
- Textron Wildcat XX LTD (2019)
- Arctic Cat Wildcat XX SE (2022-2024)
- Arctic Cat Wildcat XX (2020-2023)
- Textron Wildcat XX (2018-2019)
