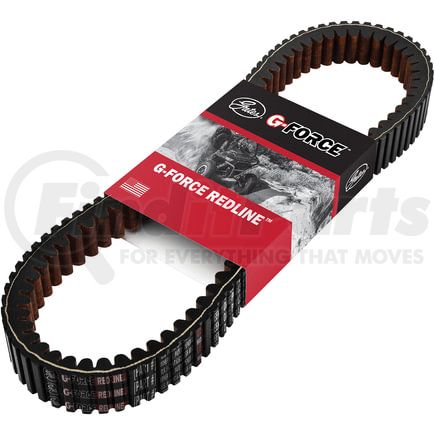

Gates 47R4738 - G-Force Redline Continuously Variable Transmission (CVT) Belt
$17999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
G-Force Redline Continuously Variable Transmission (CVT) Belt
Application Summary
2023-20 Kawasaki, Teryx, 999cc, Drive
Features & Benefits
- Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments as well as on race vehicles
Product Attributes
| Type | Power Sport Specialty High Performance CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 29 |
| Top Width | 1.473 in |
| 9829 | 1.388 IN |
| Outside Circumference | 48.55 in |
| 9830 | 47.38 IN |
| Thickness | .627 IN |
| Construction | Double Notched |
| 9837 | Yes |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Bottom Material | Yes |
| Color | Black |
| Grade Type | OE Improved |
| Top Width | 37 mm |
| 9829 | 35 MM |
| Outside Circumference | 1233 mm |
| 9830 | 1203 MM |
| Thickness | 15.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00770075810711 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
Fits Vehicles
- Yamaha TR8 Transporter 800 (2023-2024)
- Kawasaki KRT1000 Teryx KRX 4 1000 eS (2023-2024)
- Kawasaki KRT1000 Teryx KRX 4 1000 SE (2023-2024)
- Kawasaki KRT1000 Teryx KRX 4 1000 eS Special Edition (2022-2024)
- Kawasaki KRF1000 Teryx KRX 1000 Trail Edition (2021-2024)
- Kawasaki KRX1000 Teryx (2020)
- Kawasaki KRF1000 Teryx KRX 1000 (2020-2024)
- Yamaha MM8 Mountain Max LE 154 SL (2022-2024)
- Kawasaki KRF1000 Teryx KRX 1000 eS (2021, 2023-2024)
- Kawasaki KRF1000 Teryx KRX 1000 Special Edition (2021-2024)
- Yamaha MM8 Mountain Max LE 165 (2021-2024)
- Yamaha MM8 Mountain Max LE 154 (2021-2024)
