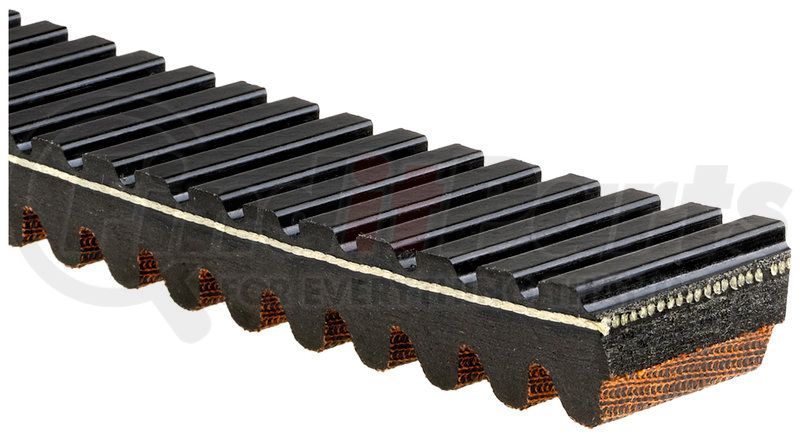

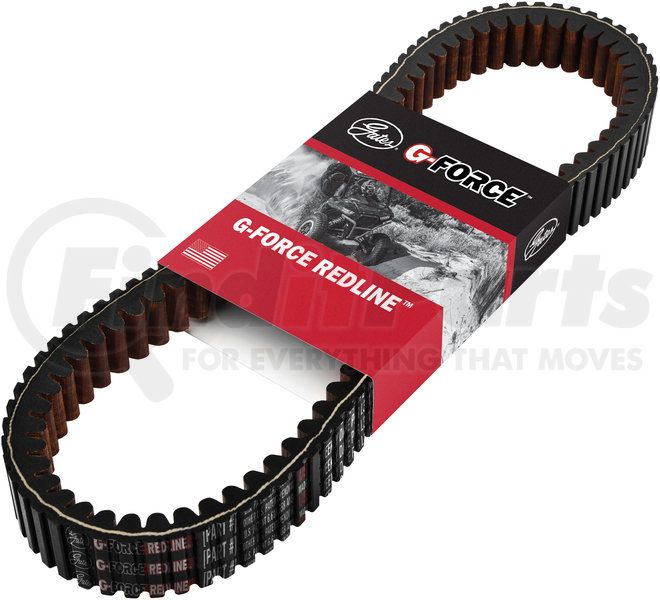

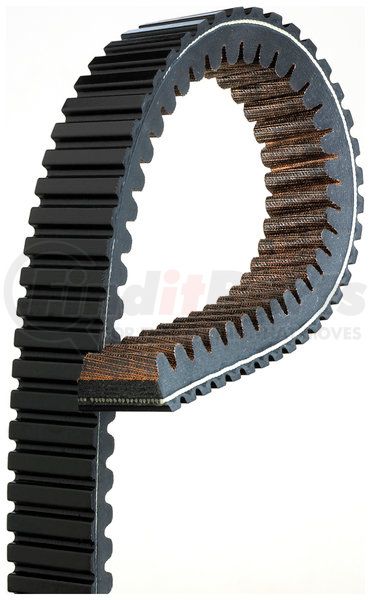

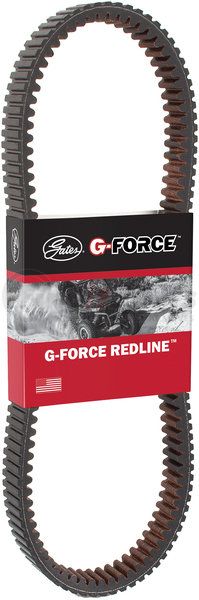

(888) 312-8812 Login SignupGATES 23R3836 G-Force Redline Continuously Variable Transmission (CVT) Belt
Tap to view 7 more
$13249
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jan 8
GATES 23R3836 Part Description
Manufacturer
Product Description
G-Force Redline Continuously Variable Transmission (CVT) Belt
Application Summary
2009 Polaris, Sportsman XP 850 EFI, 850cc, Drive
Features & Benefits
- Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments as well as on race vehicles
GATES 23R3836 Specifications
Product Attributes
| Type | Power Sport Specialty High Performance CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 28 |
| Top Width | 1.219 in |
| Pitch Width | 1.15 IN |
| Outside Circumference | 39.5 in |
| Pitch Length | 38.362 IN |
| Thickness | .567 IN |
| Construction | Double Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Bottom Material | Yes |
| Color | Black |
| Grade Type | OE Improved |
| Top Width | 31 mm |
| Pitch Width | 29.2 MM |
| Outside Circumference | 1003 mm |
| Pitch Length | 974 MM |
| Thickness | 14.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00770075813224 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 23R3836 Part Interchanges
| Brand | Part Number |
|---|---|
| Carlisle | UA448 |
| Dayco | XTX2244 |
| Prime-Line | 72-4017 |
| Carquest | 23C3836, 23G3836 |
| Polaris | 3211123, 3211203 |
| Goodyear | 32GBS1004 |
| NAPA Belts/Hose | 23C3836, 23G3836, 23R3836 |
| Timken | UA448, UXP448, UHQ448 |
GATES 23R3836 Fits Vehicles
- Polaris Sportsman 850 EFI X2 (2011)
- Polaris Sportsman 550 EFI (2010-2011)
- Polaris Sportsman 550 EFI XP w/ EPS (2009)
- Polaris Sportsman 850 EFI XP w/ EPS (2009-2011)
- Polaris Sportsman 550 Touring EPS (2012)
- Polaris Sportsman 550 (2012)
- Polaris Sportsman 550 EPS (2012)
- Polaris Sportsman 550 EFI Touring w/ EPS (2010-2011)
- Polaris Sportsman 850 EFI XP (2009-2011)
- Polaris Sportsman 550 EFI w/ EPS (2010-2011)
- Polaris Sportsman 850 EFI Touring EPS (2010-2011)
- Polaris Sportsman 550 EFI XP (2009)
- Polaris Sportsman 1000 XP High Lifter Edition (2017)
- Polaris Sportsman 850 High Lifter Edition (2017-2021, 2023-2024)
- Polaris Sportsman Forest 850 (2012-2013)
- Polaris Scrambler 850 XP HO (2013)
- Polaris Sportsman 850 HO Touring EPS Sunset Red LE (2013)
- Polaris Sportsman 850 HO XP EPS Browning LE (2012-2013)
- Polaris Sportsman 850 HO Touring EPS (2012-2013)
- Polaris Sportsman 550 EPS Orange Madness LE (2012)
- Polaris Sportsman 850 HO XP EPS (2012-2013)
- Polaris Scrambler 850 XP HO EPS LE (2013)
- Polaris Sportsman 850 HO XP EPS Stealth Black LE (2013)
- Polaris Sportsman 850 HO XP (2012-2013)
- Polaris Sportsman Forest 550 (2011-2012)
- Polaris Sportsman 850 HO Touring EPS Bronze Mist LE (2012)
- Polaris Sportsman 850 HO XP EPS Orange Madness LE (2012)
- Polaris Sportsman 550 EPS Browning LE (2011-2012)
- Polaris Sportsman 550 X2 (2010-2012)
