AGS COMPANY part description

Product Description

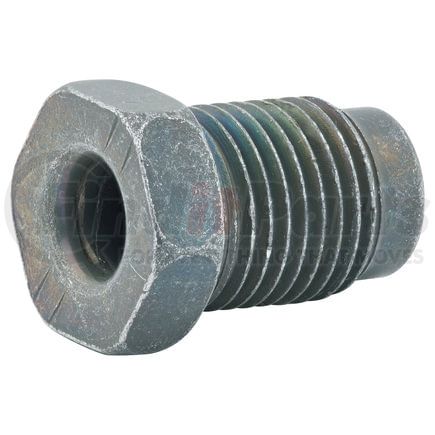

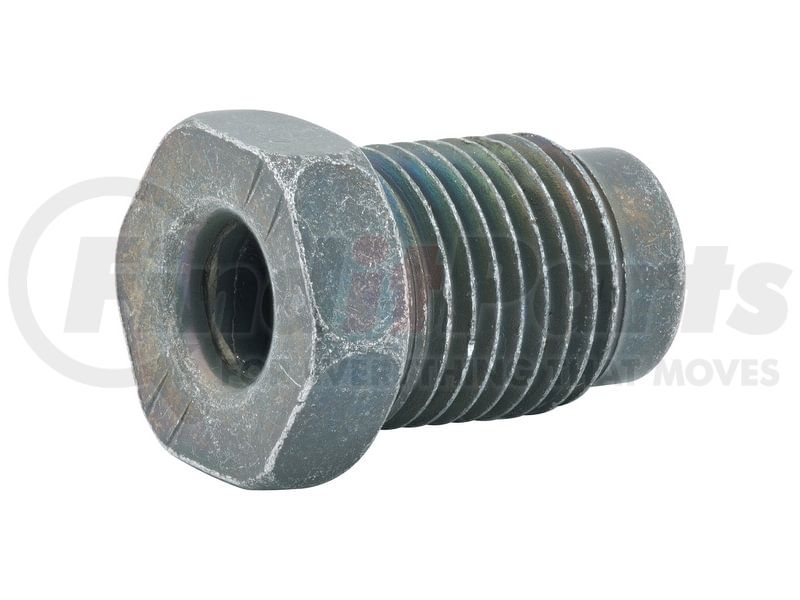

Tube Nut, S, St, 3/16 (M10x1.0 B), Bag

Features & Benefits

  • Tube nuts are used in all types of automotive hydraulic lines, including brake fuel, oil, and transmission. To make a connection, place nut over the tubing with the threaded end pointed towards the end to be flared (repeat on the other end of tube). The tubes flare will be clamped between the nut and the flare seat when tightened. AGS Fittings include Tube Nuts, Unions (Couplers), and Adapters
  • used primarily in the automotive hydraulic braking, fuel, and transmission systems. Fittings are offered in a variety of packaging options, including: retail clamshells, bulk boxed, and plastic tray assortments. Automotive hydraulic brake fittings are formed to work with either SAE Inverted Double Flare (Domestic and Japanese vehicles) or ISO Bubble Flare (European and British vehicles). In either case, the fitting (whether a Tube Nut, Union, or Adapter) must be selected to match the end form of the tube or port it will be mating to or a proper seal will not be possible.

Product Attributes

Material Steel
Thread Diameter M10x1 MM
Fitting Size (in) 3/16 IN
Unassigned_25 1/2 IN
Unassigned_36 3/16 IN
Unassigned_555 Bubble
Unassigned_879 Bubble
Unassigned_8935 10 MM
Unassigned_9428 M10-1 IN
Tube Diameter (in) 3/16 IN
Thread Size (mm) 10 MM
Seat Type Bubble
Outside Diameter (mm) 12.7 MM
Outside Diameter (in) 1/2 IN
Adapter Type Bubble
End 1 Thread Size (in) M10-1 IN

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8302303060
Harmonized Tariff Code (HTS) 8302303060
NAFTA Preference Criterion Code B
Warranty Special 12 Month warranty on product for fit and function with proper installation; proof of purchase required for replacement
Warranty Special UOM TX
Warranty Time 12
Warranty Time UOM MO
UPC 00077146392931
