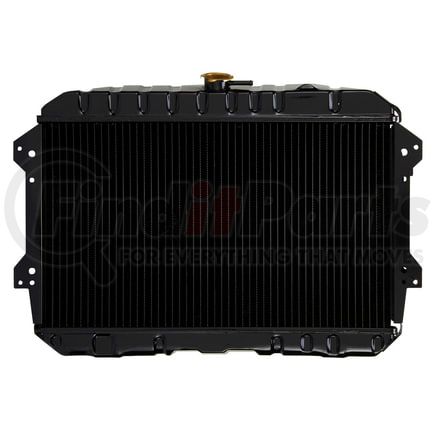

REACH COOLING 41-110 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-110 Specifications
Product Attributes
| Core Height | 349.3 MM |
| Transmission Oil Cooler Included | Yes |
| Core Width | 600.1 MM |
| Core Height | 13.75 IN |
| Core Width | 23.625 IN |
| Inlet Header Length | 23.625 IN |
| Core Thickness | 52.4 MM |
| Outlet Header Length | 23.75 IN |
| Core Thickness | 2.062 IN |
| Inlet Header Width | 2.187 IN |
| Transmission Oil Cooler Distance between Fittings | 11.25 IN |
| Inlet Header Length | 600.1 MM |
| Core Material | Copper |
| Down Flow Or Cross Flow Type | Down Flow |
| Inlet Diameter | 34.9 MM |
| Outlet Location | Bottom Right |
| Outlet Header Length | 603.3 MM |
| Inlet Location | Top Center |
| Outlet Diameter | 1.375 IN |
| Inlet Header Width | 55.6 MM |
| Tank Material | Brass |
| Outlet Diameter | 34.9 MM |
| Outlet Header Width | 55.6 MM |
| Outlet Header Width | 2.187 IN |
| Inlet Diameter | 1.375 IN |
| Radiator Cap Included | No |
| Transmission Oil Cooler Type | Concentric |
| Engine Oil Cooler Included | No |
| Core Row Quantity | 3 |
| Transmission Oil Cooler Distance between Fittings | 285.8 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 06941278903591 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-110 Cross References
| Brand | Part Number |
|---|---|
| APDI | 8010110 |
| AutoZone | A110 |
| CSF | 110 |
| CryoMAX | 110, 102 |
| DPI DataPoint Inc | 102, 110 |
| Datsun/Nissan | 21400E4100, 21400E4101, 21400E4501, 21400N3100, 21500N3100 |
| Federated | 110 |
| Four Seasons | 110 |
| NAPA | CU110, NR110X |
| Nissan | 21400E4100, 21400N3100, 21400E4101, 21400E4501, 21500N3100 |
| Northern Radiator | CR110, CR102 |
| OSC | 102, 110 |
| PACIFIC BEST INC. | PR0110 |
| Performance Radiator | 110 |
| Platinum Pro | RAD110 |
| Proliance | 433071, 433078 |
| RadCool | 110 |
| Silla Cooling | 7107A, 7107 |
| Spectra Premium | CU110 |
| US Motor Works | USR110 |
REACH COOLING 41-110 Fits Vehicles
- Nissan 240Z (1970-1973)
- Nissan 260Z (1974-1975)
