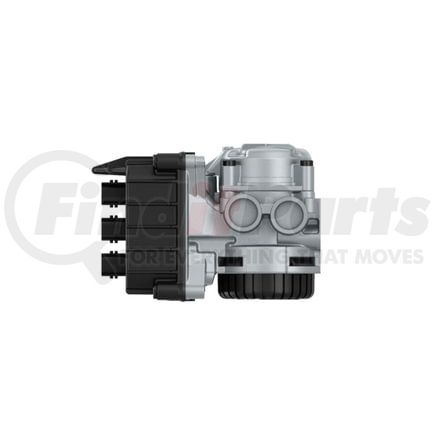

(888) 312-8812 Login SignupWABCO 4801066050 Electronic Brake Control Module - EBS Axle Modulator 1 Channel, Gen4
Tap to view 3 more
MSRP: $1,712.78
$1,34449
Save $368.29
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4801066050 Part Description
WABCO 4801066050 Specifications
Product Attributes
| Max. operating pressure | 188.5 psi |
| Voltage | 24 V |
| Calculated Volume (dm³) | 2.775 |
| Mounting | 2x M12 x 1.5 |
| Temperature Range | -40°C to +80°C |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Protection class | IP 6K6K / IP 6K9K |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Size | 185 x 125 x 120 |
| Weight | 3.5142 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Distance Between Holes | 26 mm |
| Rated current | 3500 mA |
WABCO 4801066050 Cross References
We have 1 alternatives for the 4801066050 by WABCO:
WABCO 4801066050 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4801066050 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
