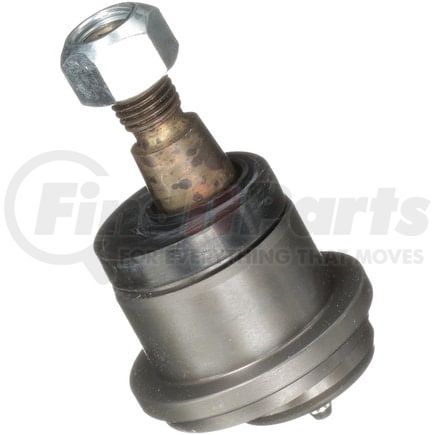

Delphi TC6046 - Ball Joint
$14949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.48 IN |
| Maximum Outside Diameter | 63.0 MM |
| Color | Black |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16.0 MM |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | No |
| Width | 63.0 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.45 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 1.1 IN |
| Stud Thread Length | 28.0 MM |
| Stud Type | Threaded |
| Mounting Type | Press In |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.08 IN |
| 9212 | 0.87 IN |
| Stud Tapered End 2 Diameter | 22.2 MM |
| 9213 | 0.72 IN |
| Stud Tapered End 1 Diameter | 18.3 MM |
| Stud Thread Pitch | 2.0 MM |
| Length | 63.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604328477 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ram 3500 (2011-2017)
- Ram 2500 (2011-2017)
- Dodge Ram 1500 (2006-2008)
- Dodge Ram 3500 (2003-2010)
- Dodge Ram 2500 (2003-2010)
