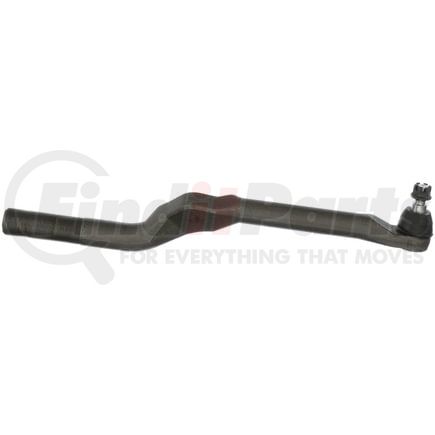

(888) 312-8812 Login SignupDELPHI TA6310 Tie Rod End
Tap to view 9 more
$19649
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
DELPHI TA6310 Part Description
DELPHI TA6310 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 63 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 16.00 MM |
| Height | 151.00 MM |
| Housing Material | Steel |
| Adjustable | Yes |
| Greaseable | Yes |
| Weight | 12.21 lb |
| Cone Outside Diameter | 0.815 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 22.638 IN |
| Length - Stud Center to End | 575.00 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 12 |
| End 1 Thread Diameter | 1.563 IN |
| Shank Length | 0.815 IN |
| Stud Length | 20.70 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Cone Outside Diameter | 20.70 MM |
| Grade | Premium |
| End 1 Thread Diameter | 39.69 MM |
| Shank Length | 20.70 MM |
| Stud Length | 0.815 IN |
| End 2 Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604335000 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA6310 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | 2C2Z 3A131-CA |
| N/A | ES800865 |
DELPHI TA6310 Fits Vehicles
- Ford E-550 Super Duty (2003)
- Ford E-550 Econoline Super Duty (2002)
