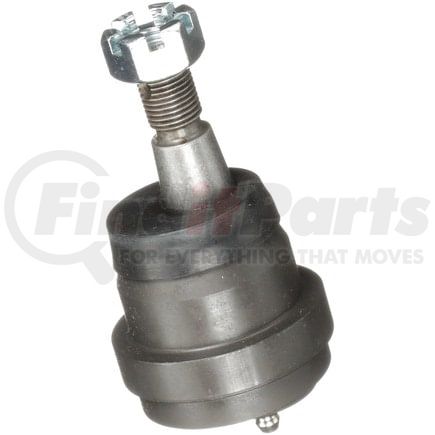

Delphi TC6134 - Ball Joint
$10949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 56.10 MM |
| Color | Black |
| Stud Thread Diameter | 14.25 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56.1 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 96.60 MM |
| Nuts Included | No |
| Adjustable | No |
| Greasable | Yes |
| Stud Thread Length | 17.7 MM |
| Stud Type | Ball Pin |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.046 IN |
| Stud Tapered End 2 Diameter | 19.08 MM |
| Stud Tapered End 1 Diameter | 15.8 MM |
| Maximum Outside Diameter | 2.210 IN |
| Stud Thread Diameter | 0.56 IN |
| Height | 3.800 IN |
| 4966 | 0.7 IN |
| 9212 | 0.75 IN |
| 9213 | 0.62 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TW |
| UPC | 00689604334027 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep TJ (1997-2006)
- Jeep Wrangler (1987-1995, 1997-2017)
- Jeep Wagoneer (1984-1990)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-2004)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1984-2001)
- Dodge Ram 2500 (1994-1996)
- Dodge Ram 1500 (1994-2001)
