Gates 26520 - Green Stripe Heavy-Duty Vulco-Flex Coolant Hose
$2699
MSRP: $27.12
Save: $0.13
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

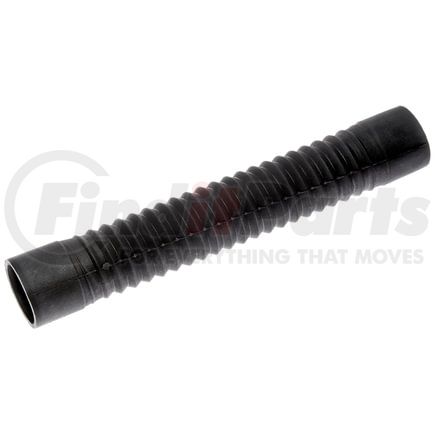

Green Stripe Heavy-Duty Vulco-Flex Coolant Hose
Application Summary
1988-1980 GMC, Brigadier, Detroit Diesel 6-71 Diesel, Lower - Pipe To Rad.
Features & Benefits
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Built-in steel spiral wire allows for medium sized curves without kinking or collapsing
- EPDM tube and Neoprene cover for extended service life
- Polyester fabric-ply reinforcement vulcanizes into shape without unnecessary strain on connections
- Resistant to heat, oil and ozone
- Performs to SAE 20R5 Type EC Class D-2 specifications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 11 IN |
| End 1 Inside Diameter | 2.25 in |
| End 2 Inside Diameter | 2.25 in |
| Material | EPDM, Steel |
| 9839 | No |
| Centerline Length | 279 MM |
| End 1 Inside Diameter | 57 MM |
| End 2 Inside Diameter | 57 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053064902 |
| VMRS Code | 042004061 |
| UNSPSC | 40142000 |
Part Interchanges
- Mopar BH-637
- Motorcraft KE-110
- White 1700824
- White 1710974
- White 1712875
- White 664856
- ACDelco 31719
- Dayco 2111HD
- Dayco 82171
- Dayco 82171GL
- Dayco M55
- BF Goodrich 911
- CARQUEST 26520
- Caterpillar A628392C2
- Chrysler 2514228
- Diamond Reo N19204E
- Diamond Reo N19204F
- Diamond Reo N91204AK
- Epton 911
- General Motors 2061328
- General Motors 2462750
- General Motors 2463651
- General Motors 2490312
- General Motors 2490332
- General Motors 332998
- General Motors 2069767
- Ford C3TA 8286 A
- Ford C3TZ 8286 A
- Ford C9HS 8286 E
- Ford D0HA 8286 BL
- Ford D0HA 8286 BM
- International Harvester (IHC) 199174
- International Harvester (IHC) 276119C1
- International Harvester (IHC) 276119C22
- International Harvester (IHC) 336663R1
- International Harvester (IHC) 423961C1
- Reo Trucks 972F228
- Reo Trucks 972F266
- Mack 10MF29301P11
- Mack 11MF2320P10
- Mack 11MF2320P13
- Mack 11MF2320P17
- Goodyear 53611
- Volvo GM Heavy Truck V1092200
- NAPA Belts/Hose FM55
- Durkee-Atwood 911
- N. P. Nelson C423611
- Westinghouse WA7817
- <Unknown> 11864F
- <Unknown> 552481
- <Unknown> M19204F
- Continental Belt 53611
Fits Vehicles
- Mack CM (1991)
- GMC Brigadier (1981-1988)
- White WIM (1984)
- White/GMC WCM (1988)
- White/GMC WCL (1988)
- White WCL (1982-1988)
- White WCA (1988)
- White/GMC J9C0 (1988-1989)
- White WCS (1981-1988)
- White WCM (1981-1988)
- White/GMC WCS (1988)
- White/GMC WCA (1988)
- GMC General (1985-1988)
