Gates 24226 - Green Stripe 2-Ply Straight Coolant Hose
$6749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

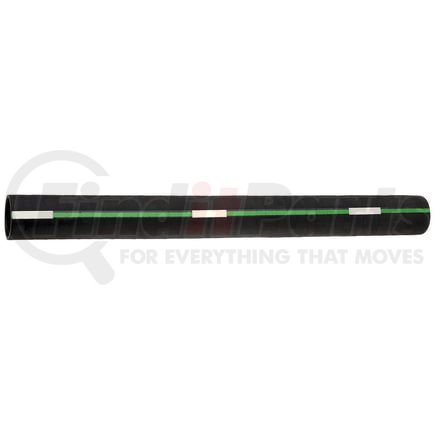

Green Stripe 2-Ply Straight Coolant Hose
Application Summary
1997-1993 Ford, LN7000, Cummins B Series 5.9 L Diesel, Upper - Eng. To Pipe
Features & Benefits
- Cover marked in 1 in. increments to facilitate approximate cut lengths, allows "custom-fit" installations
- Cover marked in 1 in. increments to facilitate approximate cut lengths, allows “custom-fit" installations
- Engineered with compounds that resist electrochemical degradation
- Approved for marine applications
- Exceeds SAE 20R1 Type EC (Class D-1 Tube, and cover, Standard Wall)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: For a maintenance free connection, use PowerGrip SB clamps
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| 2035 | 3 FT |
| End 1 Inside Diameter | 1.625 in |
| End 2 Inside Diameter | 1.625 in |
| 2053 | 85 PS |
| Construction | 2-Ply |
| Material | EPDM |
| 9839 | No |
| 2035 | .91 LM |
| Centerline Length | 36 IN |
| Centerline Length | 914 MM |
| End 1 Inside Diameter | 41 MM |
| End 2 Inside Diameter | 41 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053133004 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
GATES 24226 Cross Reference
We have 3 alternatives for the 24226 by GATES:
Fits Vehicles
- International 2675 (1989)
- Peterbilt 379 (1987-1994)
- Peterbilt 362 (1985-1994)
- Peterbilt 359 (1984-1987)
- Peterbilt 310 (1984-1987)
- Peterbilt 349 (1984-1987)
- Peterbilt 385 (1997)
- Peterbilt 375 (1987-1996)
- Peterbilt 357 (1987-1992)
- Peterbilt 320 (1987-1994)
- Peterbilt 282 (1965-1966)
- International 2575 (1989)
- International F2675 (1987-1989)
- International F2674 (1984-1989)
- International F2575 (1984-1989)
- International F2574 (1984-1989)
- International 2674 (1984-1989)
- International F2375 S (1983-1986, 1988-1989)
- Ford B-800 (1997-1998)
- Ford LN7000 (1993-1997)
- GMC Brigadier (1981-1985)
