CENTRIC part description

Product Description

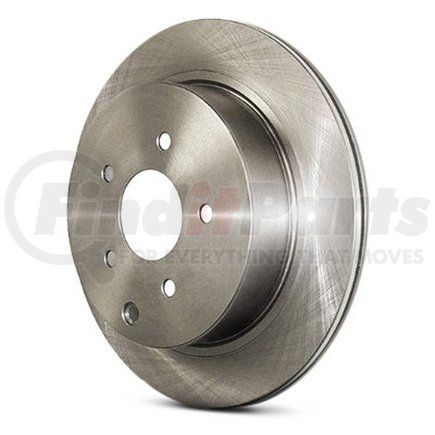

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Vane Style [cntrc] Straight
Misc Holes [cntrc] 2
Hat Id [cntrc] In 6.358
Weight [cntrc] Lbs 21.600
Disc Mounting [cntrc] Floating
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Hat Id [cntrc] Mm 161.500
Weight [cntrc] Kgs 9.820
OEM Vane Count [cntrc] 50
Product Grade [cntrc] Standard
Stud/Lug Hole Diameter 14.600 MM
Stud/Lug Hole Diameter 0.575 IN
Stud/Lug Hole Quantity 5
Mounting Bolt Hole Circle Diameter 4.500 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Center Hole Diameter 2.441 IN
Center Hole Diameter 62.000 MM
Bearings Included No
Solid Or Vented Type Rotor Vented
Surface Type Smooth
ABS Tone Ring Included No
Outside Diameter 13.386 IN
Outside Diameter 340.000 MM
Overall Height 49.200 MM
Overall Height 1.937 IN
Nominal Thickness 1.102 IN
Nominal Thickness 28.000 MM
Discard Thickness 0.984 IN
Discard Thickness 25.000 MM

Additional Information

NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 00889590538762

Part Interchanges

Fits Vehicles

  • Lexus RX350 (2023)
  • Toyota Highlander (2020-2023)
