NTN part description

Product Description

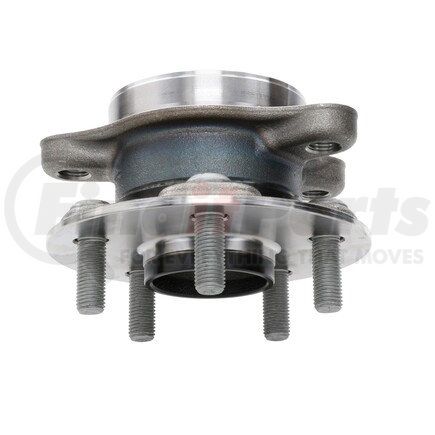

OE form, fit & function wheel hub unit.

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).

Product Attributes

Spline Quantity 26
Flange Bolt Hole Quantity 3
Wheel Pilot Diameter 54 MM
Brake Pilot Diameter 55 MM
Wheel Stud Quantity 5
Flange Shape Modified Triangle
Anti Lock Braking System Yes
Anti Lock Braking System Type Encoder
Drive Type Driven
Flange Offset 47.5 MM
9555 100 MM
Knuckle Bolt Circle Diameter (Inches) 4.488
Knuckle Bolt Circle Diameter (Millimeters) 114
Knuckle Bolt Hole Size M14X1.5
Wheel Stud Size M12X1.5 MM

Additional Information

Country of Origin (Primary) JP
Harmonized Tariff Code (HTS) 8708995800
Warranty Time 12
Warranty Time UOM MO
UPC 662810618693

Part Interchanges

Fits Vehicles

  • Toyota Prius AWD-e (2019-2022)
  • Toyota Corolla (2019-2022)
  • Toyota Prius Prime (2017-2022)
  • Toyota Prius (2016-2022)
