NTN part description

Product Description

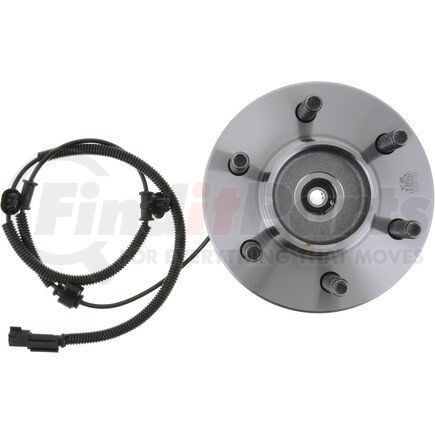

OE form, fit & function wheel hub unit.

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).

Product Attributes

Flange Bolt Hole Quantity 4
Wheel Pilot Diameter 86.76 MM
Brake Pilot Diameter 89.99 MM
Wheel Stud Quantity 6
Flange Shape Rectangular
Anti Lock Braking System Yes
Drive Type Non-driven
Flange Offset 45.5 MM
9555 135 MM
Anti Lock Braking System Type Tone Ring with Sensor
Knuckle Bolt Circle Diameter (Inches) 6.299
Knuckle Bolt Circle Diameter (Millimeters) 160
Knuckle Bolt Hole Size M14X1.5
Wheel Stud Size M14X1.5 MM

Additional Information

Country of Origin (Primary) KR
Harmonized Tariff Code (Schedule B) 8708998115
Warranty Time 12
Warranty Time UOM MO
UPC 662810618082

Part Interchanges

Fits Vehicles

  • Ford F-150 (2015-2017)
