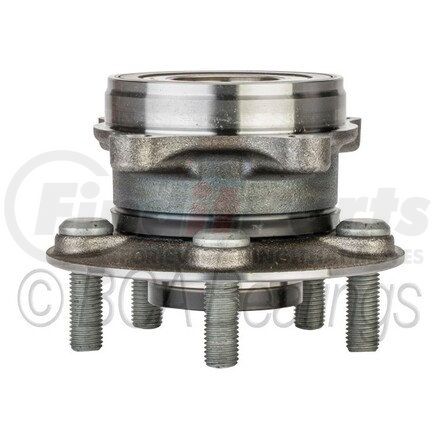

(888) 312-8812 Login SignupNTN WE61648 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 8 more
$39599
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61648 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61648 Specifications
Product Attributes
| Spline Quantity | 26 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 54.0 MM |
| Brake Pilot Diameter | 55.0 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Drive Type | Driven |
| Flange Offset | 47.0 MM |
| Flange Diameter | 4.921 IN |
| Bolt Circle Diameter | 102.0 MM |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.291 |
| Knuckle Bolt Circle Diameter (Millimeters) | 109.0 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810616484 |
NTN WE61648 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 1411424989 |
| Beck/Arnley | 051-6425, 0516425 |
| CENTRIC | 401.44002, 406.51015 |
| Centric Parts | 401.44002, 401.44002E |
| DuraGo | 29513287 |
| GMB | 7703050 |
| Lexus | 4355047010, 4355047011 |
| MOOG Chassis Products | 513287 |
| Mevotech | H513287 |
| Raybestos Brakes | 713287 |
| SKF | BR930660 |
| Schaeffler | 102231 |
| Timken | HA590411 |
| Toyota | 4355047010, 4355047011 |
| WJB | WA513287 |
NTN WE61648 Fits Vehicles
- Toyota Prius Plug-In (2012-2015)
- Lexus CT200h (2011-2017)
- Toyota Prius (2010-2015)
