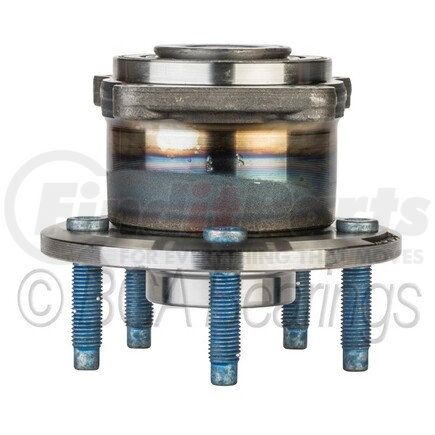

NTN WE61647 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$19199
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.223 IN |
| Brake Pilot Diameter | 2.360 IN |
| Wheel Stud Quantity | 5 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Encoder |
| Drive Type | Non-driven |
| Flange Offset | 2.550 IN |
| 9555 | 4.134 IN |
| Knuckle Bolt Circle Diameter (Inches) | 4.252 |
| Knuckle Bolt Circle Diameter (Millimeters) | 108.0 |
| Knuckle Bolt Hole Size | M10X1.5 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810616477 |
Part Interchanges
- Power Train PT512446
- Mevotech MB50309
- Mevotech H512446
- General Motors 13591998
- General Motors 13598921
- General Motors 13502872
- General Motors 13500573
- General Motors 13580090
- GMB 7303060
- Raybestos Brakes 712446
- Auto 7 1010338
- Drive Tech America NT512446
- DuraGo 29512446
- Alltech Automotive 512446
- CRS Automotive NT512446
- SKF BR930810
- SKF BR930860
- Timken HA590403
- MOOG Chassis Products 512446
- MOOG Chassis Products 512507
- Centric Parts 406.62003
- ACDelco RW20133
- Schaeffler 101877
- Schaeffler 103163
- DT Components 512446
- Autopart International 1411480968
- Fenco WH512446
- MPA WH512446
- WJB WA512446
- Centric Parts 406.62003E
- GSP 103446
Fits Vehicles
- Chevrolet Cruze Limited (2016)
- Chevrolet Cruze (2011-2015)
