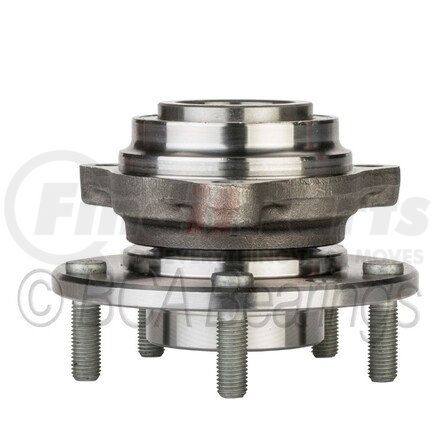

NTN WE61390 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$16449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
| Spline Quantity | 27 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 2.779 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | No |
| Drive Type | Driven |
| Flange Offset | 1.850 IN |
| 9555 | 4.750 IN |
| Knuckle Bolt Circle Diameter (Inches) | 4.750 |
| Knuckle Bolt Circle Diameter (Millimeters) | 120.7 |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810613902 |
Part Interchanges
- Power Train PT513020
- Mevotech H513013
- General Motors 7466907
- General Motors 7466924
- General Motors 7466945
- General Motors 7470501
- General Motors 7466920
- General Motors 7466942
- General Motors 7470005
- General Motors 7470536
- GMB 7300206
- Raybestos Brakes 713013
- Raybestos Brakes 713020
- Drive Tech America NT513020
- GSP 104013
- GSP 104020
- SKF BR930024
- Timken 513020
- Precision Bearing 513013
- MOOG Chassis Products 513013
- National Bearings 513020
- Centric Parts 400.62004
- Centric Parts 400.62010
- ACDelco 2045
- ACDelco 513013
- Schaeffler RW920
- Schaeffler FW913K
- Schaeffler 102286
- DT Components 513013
- Autopart International 141102098
- MPA WH513013
- WJB WA513013
- Timken 513013
- Centric Parts 400.62010E
- Centric Parts 400.62004E
- Schaeffler WH64510K
Fits Vehicles
- Oldsmobile Toronado (1979-1985)
- GMC S15 (1983-1990)
- GMC S15 Jimmy (1983-1990)
- Chevrolet S10 (1983-1993)
- Chevrolet S10 Blazer (1983-1991)
- Chevrolet Corvette (1984-1996)
- Cadillac Seville (1980-1985)
- Cadillac Eldorado (1979-1985)
- Buick Riviera (1979-1985)
- Excalibur Phaeton (1984-1986)
