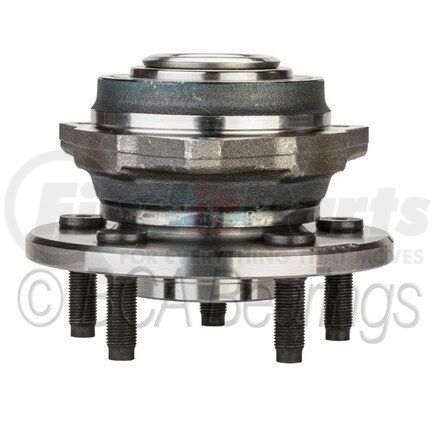

(888) 312-8812 Login SignupNTN WE61324 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$30449
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61324 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61324 Specifications
Product Attributes
| Spline Quantity | 52 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 71.3 MM |
| Brake Pilot Diameter | 71.9 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Triangle |
| Anti Lock Braking System | Yes |
| Drive Type | Driven |
| Flange Offset | 53.7 MM |
| Flange Diameter | 6.043 IN |
| Bolt Circle Diameter | 114.3 MM |
| Anti Lock Braking System Type | Encoder with sensor |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.748 |
| Knuckle Bolt Circle Diameter (Millimeters) | 120.6 |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | 1/2-20UNF IN |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810613247 |
NTN WE61324 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 141104591 |
| CENTRIC | 402.58000, 402.58000E, 402.58001 |
| Centric Parts | 402.58000, 402.58001E, 402.58000E, 402.58001 |
| Chrysler | 52128692AA, 52128692AC, 52128692AE, 52128693AA, 52128693AC, 52128693AE, V2508352, 52128692AB, 52128692AD, 52128692AF, 52128693AB, 52128693AD, 52128693AF |
| DT Components | 513176, 513177 |
| Drive Tech America | NT513176 |
| DuraGo | 29513177, 29513176 |
| Fenco | WH513176 |
| GMB | 7200258, 7200257 |
| GSP | 104177, 104176 |
| MOOG Chassis Products | 513176, 513177 |
| Mevotech | H513177, H513176 |
| Parts Master | PM513176 |
| Parts Plus | P513176 |
| Power Train | PT513176 |
| Precision Bearing | 513176 |
| Raybestos Brakes | 713176, 713177 |
| SKF | BR930224, BR930225 |
| Schaeffler | FW9176, FW9177, 559455ER |
| Timken | HA599455L, HA599455R |
NTN WE61324 Fits Vehicles
- Jeep Liberty (2002-2007)
