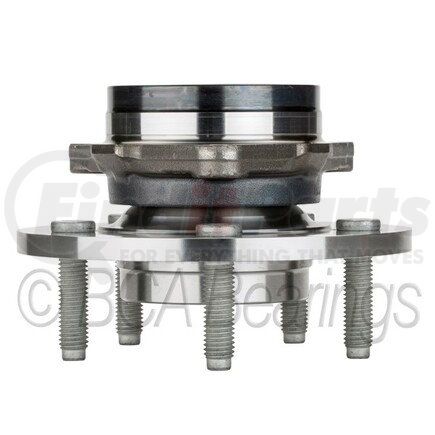

NTN WE61138 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$27799
Limited Availability
Pay over 3-12 months with . Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
Spline Quantity | 33 |
Flange Included | Yes |
Flange Bolt Hole Quantity | 3 |
Wheel Pilot Diameter | 3.420 IN |
Brake Pilot Diameter | 3.420 IN |
Wheel Stud Quantity | 5 |
Flange Shape | Modified Triangle |
Drive Type | Driven |
Bearing Type | Taper |
Flange Offset | 1.950 IN |
Flange Diameter | 181 MM |
9555 | 5.315 IN |
Bearing Generation | Gen 3 |
Knuckle Bolt Circle Diameter (Inches) | 4.960 |
Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |
Knuckle Bolt Hole Size | M14x1.5 |
Knuckle Pilot Hole Diameter | 3.91 IN |
Wheel Stud Size | M14X2 MM |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708998180 |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 662810611380 |
Part Interchanges
- Power Train PT515028
- Ford YL3Z1104BA
- Mevotech H515028
- GMB 7250020
- Raybestos Brakes 715028
- Drive Tech America NT515028
- DuraGo 29515028
- GSP 116028
- SKF BR930422
- Timken 515028
- Precision Bearing 515028
- MOOG Chassis Products 515028
- Centric Parts 400.65003
- Centric Parts 400.65003E
- Parts Master PM515028
- Schaeffler 102179
- Schaeffler FW728
- DT Components 515028
- Fenco WH515028
- Parts Plus P515028
Fits Vehicles
- Ford F-150 (2000)
