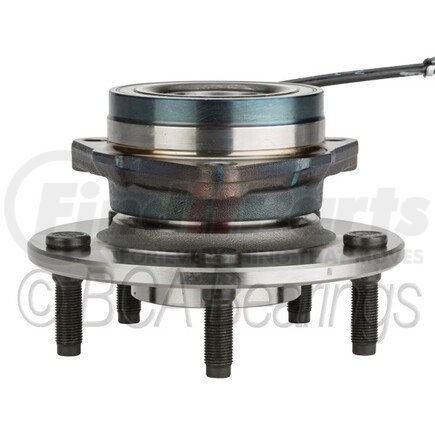

NTN WE61135 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$27499
Limited Availability
Pay over 3-12 months with . Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
Spline Quantity | 33 |
Flange Bolt Hole Quantity | 3 |
Wheel Pilot Diameter | 3.060 IN |
Brake Pilot Diameter | 3.090 IN |
Wheel Stud Quantity | 5 |
Flange Shape | Modified Triangle |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Tone Ring |
Drive Type | Driven |
Flange Offset | 2.007 IN |
9555 | 5.500 IN |
Knuckle Bolt Circle Diameter (Inches) | 4.960 |
Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |
Knuckle Bolt Hole Size | M14x1.5 |
Wheel Stud Size | 1/2-20UNF IN |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708998180 |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 662810611359 |
Part Interchanges
- Power Train PT515049
- Mevotech H515049
- GMB 7200213
- Raybestos Brakes 715049
- Drive Tech America NT515049
- DuraGo 29515049
- GSP 126049
- Chrysler 52069881AA
- SKF BR930415
- Timken SP550101
- Timken 515049
- Precision Bearing 515049
- MOOG Chassis Products 515049
- Centric Parts 402.67005
- Centric Parts 402.67005E
- Parts Master PM515049
- Schaeffler 102000
- Schaeffler FW749
- DT Components 515049
- Fenco WH515049
- Parts Plus P515049
Fits Vehicles
- Dodge Ram 1500 (1997-1999)
